1COMP 273 1 - twos complement, ﬂoating point, hexadecimal Jan. 11, 2012

“Twos complement” representation of integers

To motivate our representation of negative numbers, let me take you back to your childhood again.

Remember driving in your parent’s car and looking at the odometer.1Remember the excitement

you felt when the odometer turned from 009999 to 010000. Even more exciting was to see the

odometer go from 999999 to 000000, if you were so lucky. This odometer model turns out to be the

key to how computers represent negative numbers.

If we are working with six digit decimal numbers only, then we might say that 999999 behaves

the same as -1. The reason is that if we add 1 to 999999 then we get 000000 which is zero.

999999

+ 000001

000000

Notice that we are ignoring a seventh digit in the sum (a carry over). We do so because we are

restricting ourselves to six digits.

Take another six digit number 328769. Let’s look for the number that, when added to 328769,

gives us 000000. By inspection, we can determine this number to be 671231.

328769

+ 651231

000000

Thus, on a six digit odometer, 651231 behaves the same as -328769.

Let’s apply the same idea to binary representations of integers. Consider eight bit numbers.

Let’s look at 26ten = 00011010two. How do we represent −26ten ?

00011010

+ ????????

00000000

To ﬁnd −26, we need to ﬁnd the number that, when added to 00011010 gives us 00000000. We use

the following trick. If we “invert” each of the bits of 26 and add it to 26, we get

00011010 ←26

+ 11100101 ←inverted bits

11111111

This is not quite right, but its close. We just need to add 1 more. (Remember the odometer).

11111111

+ 00000001

00000000

Note we have thrown away the ninth bit because we are restricting ourself to eight bits only. Thus,

1Ok, ok, odometers were used back in the 20th century, before you were born..

last updated: 12th Jan, 2016 1

COMP 273 1 - twos complement, ﬂoating point, hexadecimal Jan. 11, 2012

00011010 ←26

11100101 ←inverted bits

+ 00000001 ←+1

00000000

Alternatively, we add 1 to the inverted bit representation and this must give us −26.

11100101 ←inverted bits

+ 00000001 ←+1

11100110

00011010

11100110 ←This is −26 10.

00000000

Thus, to represent the negative of a binary number, we invert each of the bits and then add 1. This

is called the twos complement representation.

Special cases

One special case is to check is that the twos complement of 00000000 is indeed 00000000.

00000000

11111111 ←invert bits

11111111

And adding 1 gets us back to zero. This makes sense, since -0 = 0.

Another special case is the decimal number 128, and again we assume a 8 bit representation. If

you write 128 in 8-bit binary, you get 10000000. Note that taking the twos complement gives you

back the same number 10000000.

10000000

+ 01111111 ←invert bits

11111111

And adding 1 gets us back to zero. So, what is -128 ?

01111111 ←the inverted bits

+ 00000001 ←adding 1

10000000

Note that 128 has the same representation as -128. Of course, we can’t have both: we have to

decide on one. Either 10000000 represents 128 or it represents -128. How does that work?

last updated: 12th Jan, 2016 2

COMP 273 1 - twos complement, ﬂoating point, hexadecimal Jan. 11, 2012

Unsigned vs. signed numbers

If treat all the 8 bit numbers as positive, but we ignore the carry of the leftmost bit in our sum

(the most signiﬁcant bit, or MSB), then adding 1 to the binary number 11111111 (which is 255 in

decimal) takes us back to 0. See the ﬁgure below on the left. This representation is called unsigned.

Unsigned numbers are interpreted as positive.

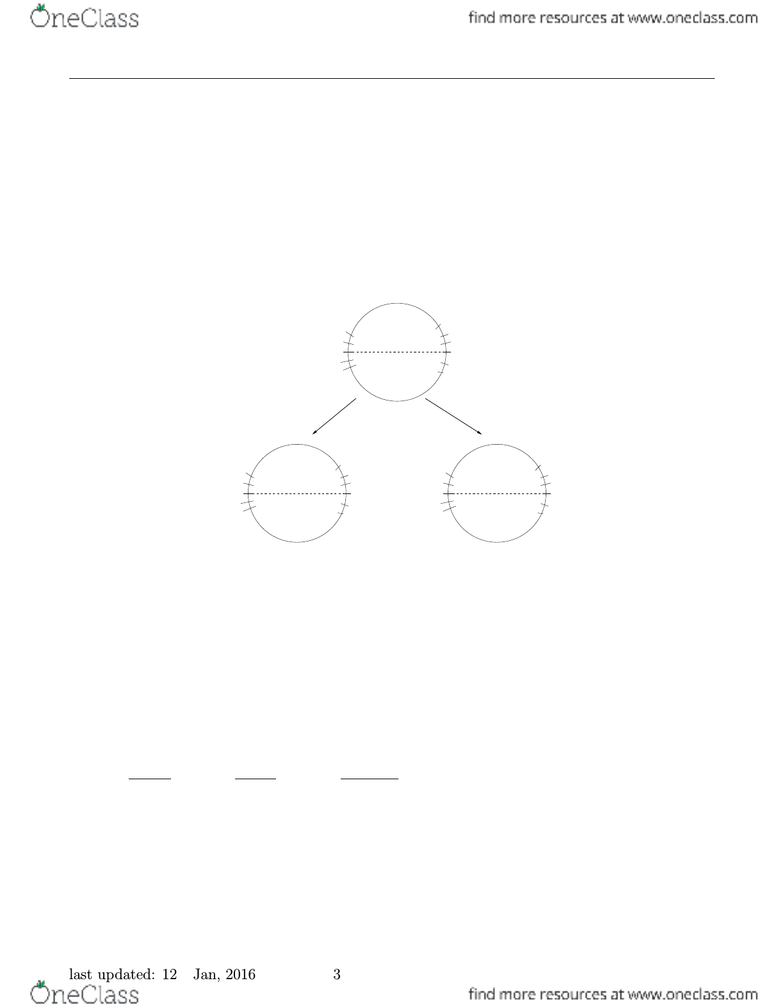

To allow for negative numbers, we use the twos complement representation. Then we have the

situation of the circle on the right. This is called the signed number representation. Note that the

MSB indicates the sign of the number. If the MSB is 0, then the number is non-negative. If the

MSB is 1, then the number is negative.

00000000

00000001

00000010

11111111

11111110

00000011

10000010

10000001

10000000

01111111

01111110

0

1

2

255

254

3

128

127

126

129

130

0

1

2

-1

-2

3

-128

127

126

- 127

- 126

unsigned signed

Unsigned and signed n-bit numbers

The set of unsigned n-bit numbers is represented on a circle with 2nsteps. The numbers are

{0,1,2,..., 2n−1}. It is common to use n= 16,32,64 or 128, though any value of nis

possible. The signed nbit numbers are represented on a circle with 2nsteps, and these numbers are

{− 2n−1, . . . , 0,1,2,..., 2n−1−1}. Signed nbit numbers are represented using twos complement.

For example, if n=8, then the signed numbers are {−128,−127,..., 0,1,2,..., 127}as we saw

earlier. Consider the following table for the 8 bit numbers.

binary signed unsigned

00000000 0 0

00000001 1 1

: : :

01111111 127 127

10000000 -128 128

10000001 -127 129

: : :

11111111 -1 255

last updated: 12th Jan, 2016 3
