**preview**shows pages 1-2. to view the full**7 pages of the document.**COMP 273 12 - MIPS co-processors Feb. 17, 2016

In today’s lecture we will look at two ”co-processors”, namely the ﬂoating point processor (called

CP1 or the FPU) and the kernel processor (called CP0 or the ’system control’ processor). We will

look at the MIPS assembly language instructions for this processor.

This is the last lecture above MIPS programming. After this, we will go back to the circuits

and connect the general ideas about circuits to the particular instructions we have seen in MIPS,

mostly CPU instructions but occasionally CP0 too.

Integer multiplication and division in MIPS

[ASIDE: The slides also start out with this mini-topic, but at the beginning of the lecture, I decided

to skip over this topic. I then returned to the topic (slides) a bit later.]

In Assignment 1, you built a simple but slow circuit for multiplying two unsigned integers and,

in lecture 7, I discussed more complicated circuits for how you could perform fast multiplication.

You should appreciate that there are many ways this could be done. Those details should now be

put ”under the hood”. Let’s just look at multiplication from the MIPS programmer’s perspective.

In MIPS assembly language, there is a multiplication instruction for signed integers, mult, and

for unsigned integers multu. Since multiplication takes two 32 bit numbers and returns a 64 bit

number, special treatment must be given to the result. The 64 bit product is located in a “product”

register. You access the contents of this register using two separate instructions.

mult $s0, $s1 # Multiply the numbers stored in these registers.

# This yields a 64 bit number, which is stored in two

# 32 bits parts: "hi" and "lo"

mfhi $t0 # loads the upper 32 bits from the product register

mflo $t1 # loads the lower 32 bits from the product register

You can only read from the product register. You cannot manipulate it directly. In MARS, the

product register is shown as two 32 bit registers, HI and LO. If the HI register has all 0’s, then the

product that is computed can be represented by 32 bits (what’s in the LO register). Otherwise, we

have a number that is bigger than the maximum int and it would need to be treated separately.

Details are omitted here.

What about division? To understand division, we need to recall some terminology. If we divide

one positive integer by another, say 78/21, or more generally ”dividend/divisor” then we get a

quotient and a remainder, i.e.

dividend = quotient ∗divisor + remainder

e.g. 78 = 3 ∗21 + 15

In MIPS, the divide instruction also uses the HI and LO registers, as follows:

div $s0, $s1 # Hi contains the remainder, Lo contains quotient

mfhi $t0 # remainder moved into $t0

mflo $t1 # quotient moved into $t1

The mult, div, mfhi, mflo are all R format instructions.

last updated: 18th Feb, 2016 1 lecture notes c

Michael Langer

Only pages 1-2 are available for preview. Some parts have been intentionally blurred.

COMP 273 12 - MIPS co-processors Feb. 17, 2016

ﬂoating point in MIPS

As I also mentioned in lecture 7, special circuits and registers are needed for ﬂoating point op-

erations. The simple version of MIPS that we are using (called the R2000) was created back in

the mid-1980s. At that time, it was not possible to ﬁt the ﬂoating point circuits and registers on

the same physical chip 1as the chip that contained the CPU (including registers $0-$31, ALU,

integer multiplication and division). Instead, the ﬂoating point operations were carried out on a

physically separate chip called the ﬂoating point coprocessor or ﬂoating point unit (FPU) which in

MIPS is called coprocessor 1. The FPU for MIPS has a special set of 32 registers for ﬂoating point

operations, named $f0, $f1, ... $f31.

Recall that double precision ﬂoats require two words. In MIPS, double precision numbers require

two registers. These are always consecutive registers, beginning with an even number register ($f0,

$f2, etc). Thus, there is no need to reference both registers in the instruction. For example, a

double precision number referenced by $f2 in fact uses $f2 and $f3.

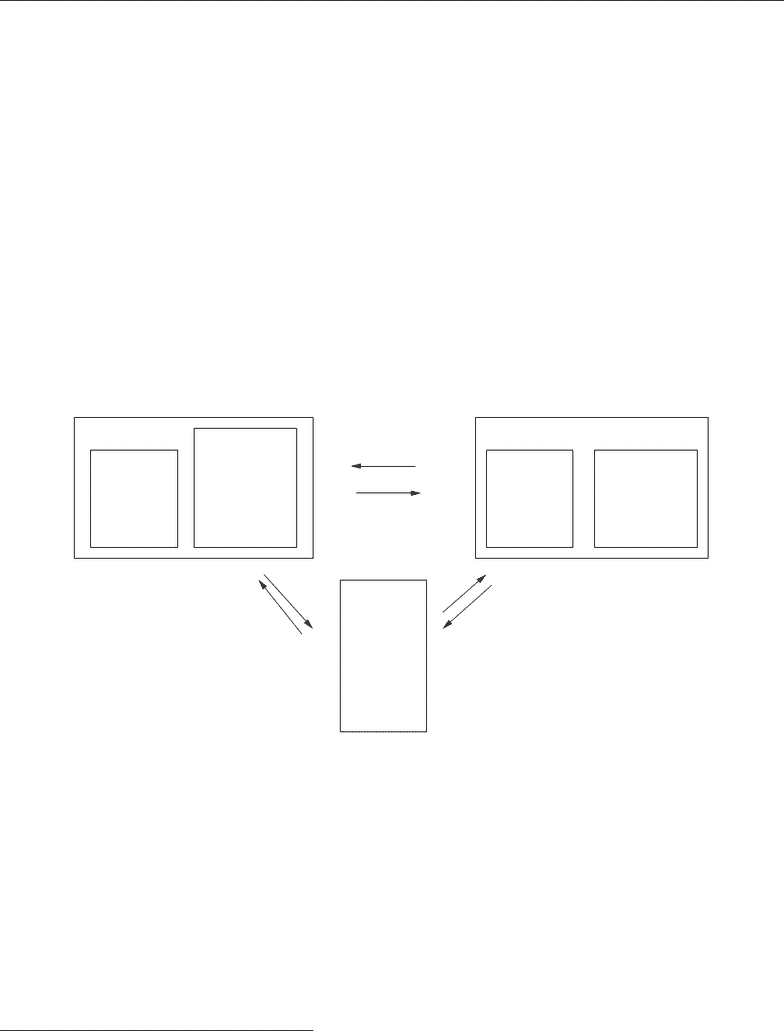

register

$0,..,$31

integer

arithmetic $f0,.. $f31

register floating point

multiplication

division

CPU (central processing unit)

logical ops multiplication

divison

arithmetic

int−float convert

mtc1

mfc1

Memory

(2^32 bytes)

sw

lw swc1

lwc1

"coprocessor 1"

FPU (floating point unit)

The MIPS instructions for adding and subtracting ﬂoating point numbers are of the form:

add.s $f1, $f0, $f1 # single precision add

sub.s $f0, $f0, $f2 # single precision sub

add.d $f2, $f4, $f6 # double precision add

sub.d $f2, $f4, $f6 # double precision sub

Having a separate FPU takes some getting used to. For example, the following instructions have

incorrect syntax and are not allowed.

add.s $s0, $s0, $s1 # NOT ALLOWED (add.s expects FPU registers)

add $f0, $f2, $f2 # NOT ALLOWED (add expects CPU registers)

1by “chip”, I mean the silicon-based electronics which contains the combinational and sequential circuits

last updated: 18th Feb, 2016 2 lecture notes c

Michael Langer
