COMPENG 2DI4 Lecture Notes - Lecture 34: Kicad, Display Device, Led Circuit

161 views44 pages

Document Summary

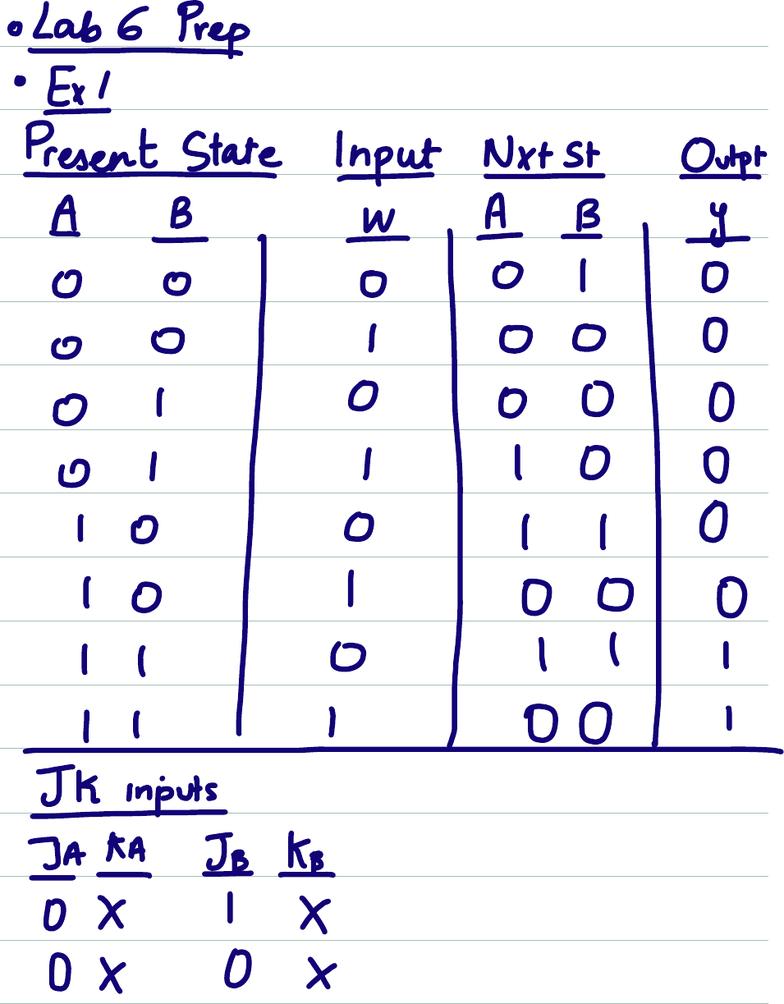

Agenda: omar"s office hours, lab 6 preparations. Omar will now have office hours in etb 127. Starting from next week: monday, wednesday and fridays, poll will be posted on avenue to determine best times, office hours will then be posted on avenue. Kicad course by mcmaster ieee: november 25 and 27 (7-9pm) Part i: 25th, introduces the kicad software (basics) Part ii: 27th, walks you through a real example of creating a pcb. You can then get your pcb milled at the ieee: held in itb a113. if you want your pcb milled. Registration (2 steps: fill out form (http://goo. gl/forms/60z1it2mxb, pay ahead of event in itb 141. Lab 6: individual test, 80 minutes long. 60 min for sequential: run during your regular lab schedule. Schedule will be posted on avenue under lab 6. You only need to show up at your appointed time: tas invigilate(cid:198) no questions. Lab 6 administration: practice examples posted, excitation tables/ data sheets provided.
