Certified SolidWorks Associate (CSWA)
DISCLAIMER: This sample exam is provided to show you the format and approximate
difficulty level of the real exam. It is not meant to give away the whole CSWA exam.
These questions are an example of what to expect in the CSWA exam.
How to take this sample exam:
1. To best simulate the conditions of the real test, it is best NOT to print this exam. Since
the Virtual Tester client window runs concurrently with SolidWorks you must switch
back and forth between the two applications. Keeping this document open and consulting
it on your computer while running SolidWorks is the best method to simulate the real test
conditions.
2. The multiple choice answers should serve as a check for you to ensure that your model is
on the right track while completing this exam. If you do not find your answer in the
selections offered then most likely there is something wrong with your model at that
point.
3. Answers to the questions are on the last pages of this sample test document. There are
also hints that can help save time during the exam.
4. If you can complete this exam and get at least 6 out of the 8 questions correctly in 90
minutes or less then you should be ready to take the real CSWA exam.
What you will need for the real CSWA exam:
1. A computer that is running SolidWorks 2007 or higher.
2. The computer must have a connection to the Internet.
3. A double-monitor is recommended but not necessary.
4. If you will be running the Virtual Tester client on a separate computer from the one that
is running SolidWorks, make sure there is a way to transfer files from one computer to
the other. You will be required to download SolidWorks files during the real test to be
able to correctly answer some of the questions.
Unlock document

This preview shows pages 1-3 of the document.
Unlock all 12 pages and 3 million more documents.

Already have an account? Log in
The following is the topic and question breakdown of the CSWA exam:
Drafting Competencies (3 Questions of 5 Points Each):
Miscellaneous questions on drafting functionality
Basic Part Creation and Modification (2 Questions of 15 Points Each):
Sketching
Extrude Boss
Extrude Cut
Modification of Key Dimensions
Intermediate Part Creation and Modification (2 Questions of 15 Points Each):
Sketching
Revolve Boss
Extrude Cut
Circular Pattern
Advanced Part Creation and Modification (3 Questions of 15 Points Each):
Sketching
Sketch Offset
Extrude Boss
Extrude Cut
Modification of Key Dimensions
More Difficult Geometry Modifications
Assembly Creation (4 Questions of 30 Points Each):
Placing of Base Part
Mates
Modification of Key Parameters in Assembly
Total Questions: 14
Total Points: 240
165 out of 240 points needed to pass the CSWA.
The sample test below will show the basic format of the CSWA exam in three sections:
Drafting Competencies
Part Modeling
Assembly Creation
Unlock document

This preview shows pages 1-3 of the document.
Unlock all 12 pages and 3 million more documents.

Already have an account? Log in
SAMPLE TEST
Drafting Competencies:

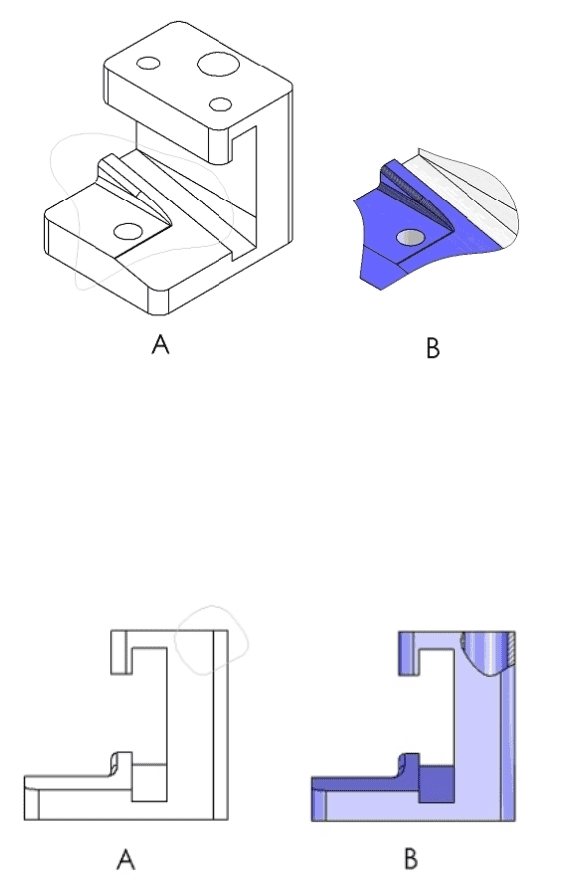

1. To create drawing view ‘B’ it is necessary to sketch a spline (as shown) on drawing view ‘A’
