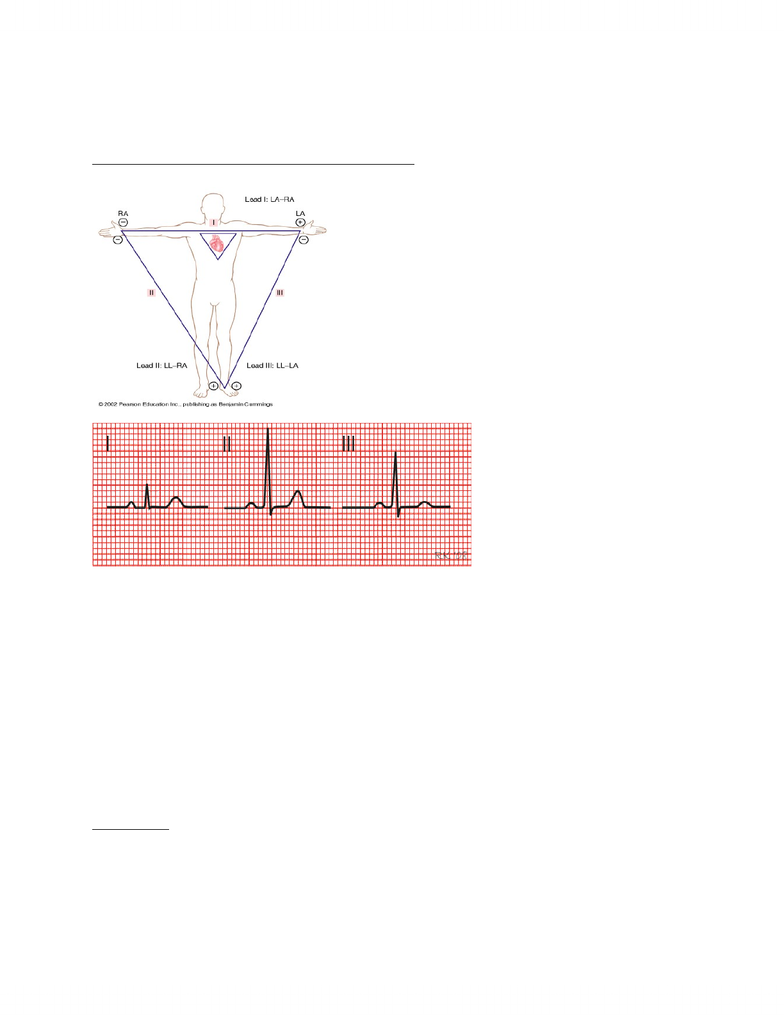

Figure The standard ECG patterns when referencing ECG from the leads
Thiruvarangan
BIOC34 – Lecture II – Electrocardiogram (ECG)
Bipolar Limb Leads
ECG essentially measures surface electricity originating from the heart. As the heart
depolarizes, electrical activity from the heart spreads out to the rest of the body which is then
picked up by the electrodes placed on the body.
Bipolar ECG limb leads record the voltage between electrodes placed on the wrist and
the arms
Equilateral triangle surrounding the heart is formed (Einthoven’s triangle)
Standard Bipolar Limb Leads
Lead I: right arm (-) to the left arm (+)
Lead II: right arm (-) to the left leg (+)
Lead III: left arm (-) to the left leg (+)
Einthoven’s Law
In the electrocardiogram, at any given instant, the potential of any wave in lead II is equal to the
sum of the potentials in lead I and III (E = electrical potential; EI + EIII = EII)
Lead I = ELA – ERA
Lead II = ELL – ERA
Lead III = ELL – ELA

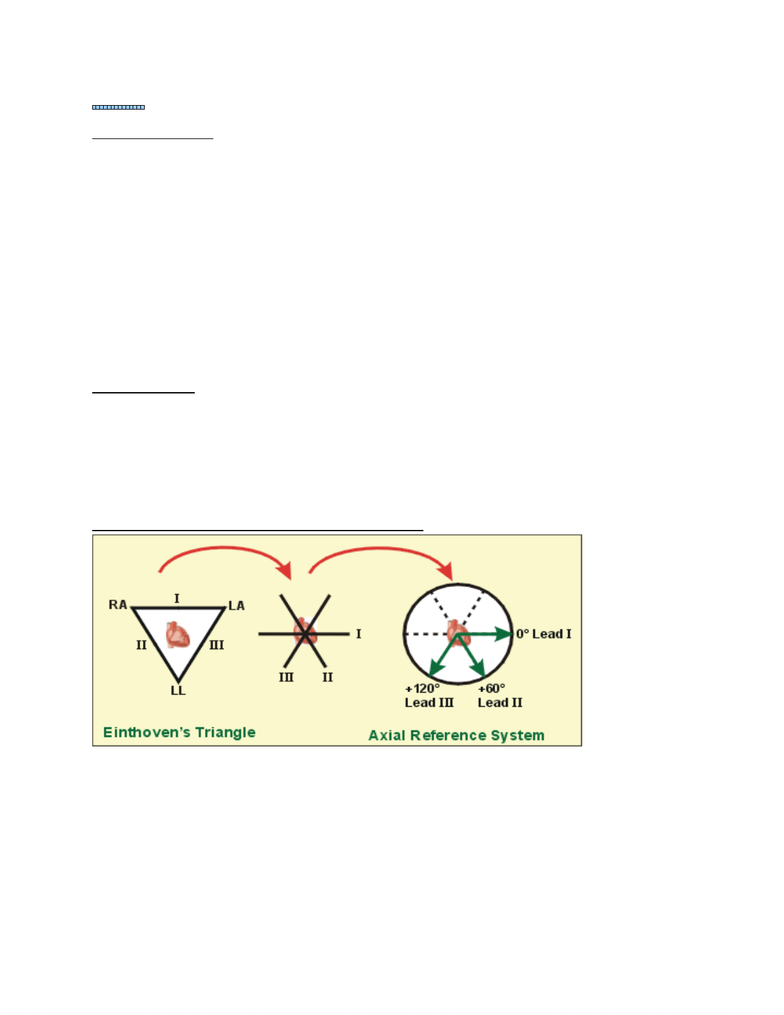

Einthoven’s Triangle and the Axial Reference System
Positive electrode for lead I: 0° relative to the heart
Positive electrode for lead II: + 60° relative to the heart
Positive electrode for lead III: + 120° relative to the heart
Deflections or movements of electrical axis above and beyond these different ranges can be
used as diagnostic tools for different diseases.
Unlock document

This preview shows pages 1-3 of the document.
Unlock all 12 pages and 3 million more documents.

Already have an account? Log in
Lead II is the most important. ECG interpretation will predominantly be viewed through
the perspective of lead II.
Positive and Negative Deflections in the ECG Trace
Wave of depolarisation toward the left arm: positive deflection in lead I.
Wave of depolarisation away from the left arm: negative deflection in lead I.
Wave of repolarisation away from the left arm: positive deflection in lead I.
Wave of repolarisation toward the left arm: negative deflection in lead I.
Wave of depolarisation toward the left leg: positive deflection in leads II and III.
Wave of depolarisation away from the left leg: negative deflection in leads II and III
Maximum positive deflection occurs when wave of depolarisation heads toward the
positive electrode in a path that is parallel to the given axis.
oEx: if the wave of depolarization moves down at a 120° angle, then the maximum
depolarization occurs in lead III.
ECG Waves
An ECG recording is very similar to a compound AP
Unlock document

This preview shows pages 1-3 of the document.
Unlock all 12 pages and 3 million more documents.

Already have an account? Log in
Thiruvarangan
The first component is a P-wave which is indicative of electrical activity associated with
depolarization of the atria.
QRS Complex (combination of deflections) predominantly reflects the depolarization of
the ventricles. Also hidden within this, is the repolarization of the atria (hard to distinguish
the two events because the ventricular depolarization is so large).
T Wave (from Lead II and III) represents the repolarisation of the ventricle.
Phases of the ECG relate to the waves of depolarization and repolarization during a heart beat
The P Wave is significantly smaller than the QRS Complex because the amount of
electrical generated and detected by the ECG electrodes is proportional to the amount
muscle tissue that is available to depolarize (more muscle in ventricle than atria)
Any disease state that leads to enlarged ventricles (hypertrophy) will lead to muscle
mass and can affect the magnitude of the QRS complex.
Pacemaker Potential
The early phases of the P-wave reflect the electrical activity traveling from the pacemaker cells
across the surface of the body and being picked up by the ECG electrodes.
Conduction through the atria
As we begin to get the waves of depolarization moving through the atria and we begin to get
phases of depolarization of the muscle, this conduction of electricity through the atria and the
time of this conduction is reflected in the second half of this initial upward swing.
P Wave: Atrial Depolarisation
The P Wave represents pacemaker potentials, transmission of electrical activity through the
atria, and full contraction of the atrial muscle.
