Measures of Dispersion

Range

Simplest measure of dispersion

Takes difference between smallest and largest value in the dataset, at the

interval/ratio scale

But, influenced by outliers

Range = Xmax - Xmin

Quartiles

Can yield more information and lesson impact of outliers

Data are divided into quartiles (4 Groups)

Centiles (5 groups), Percentile (100 groups)

Standard Deviation and Variance

Two of the most commonly used measures of dispersion

Comparing values of each measure to the Mean

Xi – X (x bar)

Two key properties of the mean/ value relationship

o Sum of differences will always add up to Zero

o Sum of the squared difference will be the minimum sum possible.

Called “Least Squares” property

o Least Squares property carries over into calculating

o Variance:

, second X has a bar ontop , x bar =

sample mean

o Standard Deviation

Skewness

o Measures the degree of symmetry in the frequency of distribution

o Determine how evenly (or unevenly) the values are distributed either

side of the mean

o

o You can only say if something is positively skewed or negatively

skewed, there is no value of the difference

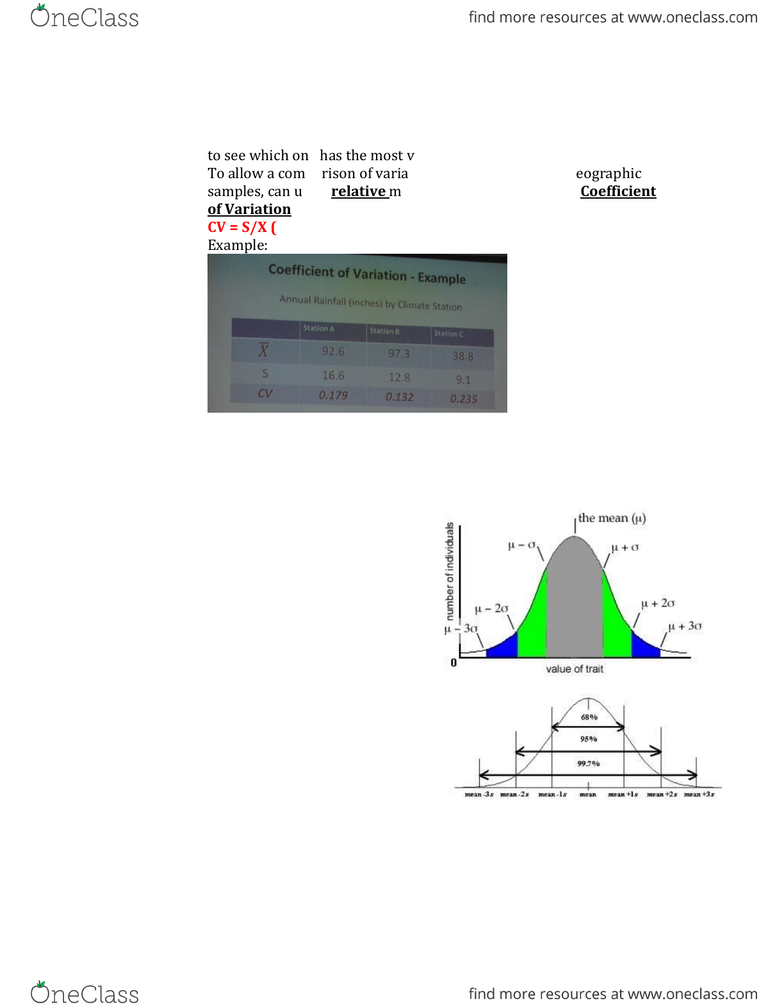

Coefficient of Variation

o Allows for comparison of variability spatial samples – samples tied to

a particular location

o Tests which sample has the greatest variability

o Standard Deviation or Variance are absolute measures, so they are

influenced by the size of the values in the dataset – can’t compare

among the samples because the scales will be different

o Used for when you want to compare 2 locations. Ex. studying

climatology and you are looking at rainfall in different areas, so you

want to find which location has the greatest variability in rainfall?? Or

looking at average household income, census data can be measured at

the census tract level. And look at the variability in the census tracts,

to see which one has the most variability

o To allow a comparison of variation across two or more geographic

samples, can use a relative measure of dispersion called Coefficient

of Variation

o CV = S/X (standard deviation/ mean)

o Example:

o

o Which station has the greatest degree of variation??

Station C because it has a greater CV

Practical Significance of Standard Deviation

Empirical Rule, lets say the grey area is

68% of the data, so it falls in one

standard deviation, so negative one

standard deviation and one standard

deviation

o 95% will fall in negative 2

standard deviation to 2 standard

deviation

o this is a universal law for the

distribution

EXAMPLE: Mean = 20 and S = 5

o So 68% will fall between 20 +/- 5

or between 15-25

o 95% fall between 10-30

o 99.7% fall between 5-35 (3

standard deviations)

o Normal Distribution Sample

PUT ON CHEAT SHEET

Z-Scores

Standard scores are referred to as Z scores

Indicated how many standard deviations separate a particular value from the

mean

Z scores can be + or – depending if they are > or < the mean

Z score of the mean is 0 and the standard deviation is + or – 1.

Table of Normal Values provides probability information on a standardized

scale.

o Statistics is a tool for forecasting, we can look at the probability of a

particular value. If we have the mean of the assignment and the

standard deviation, what is the probability of a student getting a

certain grade?

But we can also calculate Z scores

Formulas involves comparing values to the mean value, and dividing by the

standard deviation

Results is interoperated as the “number od standard deviations an

observation lies above or below the mean”

o Z is the standard score

o S is the standard deviation of the sample

o X – each value in the data set

o X bar – the man of all values in the data set

E.x. Rain fall in Toronto: the mean= 39.95 inches of rainfall , S =

7.5 inches

Z = 1.07. Therefore 48 inches is 1.07 standard

deviations above the mean. (If it were a negative value,

you would have said below the mean)
