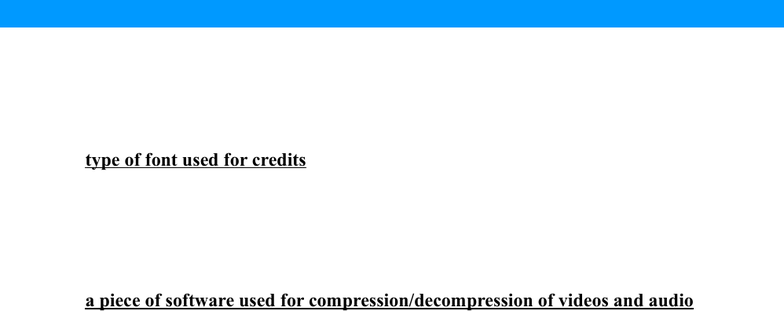

Warm up questions
which of these will NOT affect the size of the video file?
Video size (height and width)
colour resolution
type of font used for credits – at this pint, it's just compressing pixels
number of frames per second
length of video clip
all of the above will affect the size
what is codec?
A type of video capture card
a piece of software used for compression/decompression of videos and audio
a piece of software used to edit video
none of the above
Introduction to sound
sound can
set a mood
sell, sell, sell
educate/present information
allow communication over the web via Internet audio conferencing
internet telephone
allows two-way, full-duplex audio conversations over the web. With Internet
telephoning, you can talk to friends or family without the cost of a long-distance phone
Where can you get sound?
purchase a CD – must watch for copyright infringements when using sound on your site
download sound from companies
download iTunes
Create your own sound
recording program with a computer's operating system (such as Sound Recorder) and speak
into a microphone attached to the computer – quality will not be the best
recording studio with equipment such as DAT (Digital Audio Tape) devices that record
sounds digitally. Produces a high quality commercial product
electronic instruments such as synthesizers can be used to create music sound files.
Connecting the instrument to a computer allows the sounds to be captures in an MIDI
(music Instrument Digital Interface) format.
What is sound?
Sounds are pressure waves of air
as sound waves hit the ear they vibrate our ear drum
transmitted by longitudinal waves / compression waves
visualize the sounds as a series of recurring called waveforms
Q: which part of the wave indicates the volume of the sound?
Q: which part of the wave indicates the pitch or frequency?
voice muscles vibrate and cause the air to move and thus cause sound (a series of waves)
two people (or one person talking to music) talking causes two sets of overlapping waves. The
overlapping waves actually form a new wave
How do computers represent sound?
Computer must somehow represent the wave
Q: what two things does a computer always do when it needs to represent something?
Take samples – the more samples, the higher the quality
always sample and quantify things
The Nyquist limit
this rule says you MUST take at least 2 samples for every cycle of the wave. If you take less
than two samples, you will get a completely different sound wave
Q: what does the Nyquist Limit rule imply about taking samples for higher pitched sounds than
lower pitched sounds?
Implies that for higher pitch sounds you must take more samples
we MUST take 2 or more samples per wave
Q: what is the advantage of taking lots of samples per wave?
Better representation of sound
Q: what is the disadvantage of taking lots of samples per wave?
You're going to get a large file size
number of samples per second is represented in Hertz (Hz)
number of 1000 samples per second is represented by KiloHertz (Khz)
humans can hear between 20 Hz to 20 Khz
for CD quality, we need 44, 100 samples per second or 44, 100 HZ or 44.1 KHz
Sample rate
sample rate – number of samples we take per second of audio or number of times per second
the waveform is measured
it is breaking sound waves into chunks
typical sounds rates
voice only (telephone quality) – 8 Khz
AM radio quality – 11.025 Khz
FM radio quality – 22 Khz
CD quality music – 44.1 Khz
one of these was sampled at 8000 Hz (8 Khz) and one at 16000 Hz (16 KHz)
Q: which one sounds better?
Quantizing – (aka Sample Size)
CDs use 16-bit rate (65, 536 possible values could be given to each sample)
Q: what is the advantage of having a higher bit rate for the sampling size?
More bits = better quality
Q: what is the disadvantage of having a higher but rate for the sample size?
Bigger file size
How does the sound wave get converted to be stored on our computer?
Computers have a sound card which samples (sets the number of sample and quangtizes) the
sound wave from a microphone
sound card has an Analog-to-Digital Converter (ADC) for recording, and a Digital-to-Analog
Converter (DAC) for playing audio
operating system (Windows, Mac OS X, Linux, etc.) talks to the sound card to actually handle
the recording and playback
Sound editing
now we have the sound in the computer, let's edit the sound bit. What can we do to it?
Rearrange the Waveform
cut, copy, drag, trim parts of the waveform
overlap two or more piece f audio
find words you want to edit out and cut them from the waveform
Modify the Volume
use amplify, fade-in, fade-out, envelope, normalize
sometimes songs from CDs play much louder than others , even at the same volume
setting. Normalization corrects this by scanning audio files to find peak or average
levels and proportionally increasing or reducing the levels to obtain the desired volume
Noise Reduction
Hiss Reduction
noise within a given frequency range
Noise Reduction/Removal
software examines the audio and finds unusual differences from waveforms and
removes them. Need a longer piece of audio than for Hiss Reduction because software
had to analyze the audio to generate stats on what is unusual
Special Effects
adding echo, changing pitch of a portion
Downsample and reduce the bits depth
compress to reduce the file size
Why compress sound?
An example of uncompressed sound with CD quality for 1 minute of audio?
1 minute of recording – 60 seconds
60 x 44, 100 samples/seconds = 2, 646, 000 samples
2, 646, 000 samples x 16 buts per sample = 42, 336, 000 bits
42, 336, 000 bits x 2 (stereo, 2 channels) = 84, 672, 000 bits
84, 672, 000 / 8 bits per byte = 10, 884, 100. About 10 MB
