Lecture 46 Lung Volumes

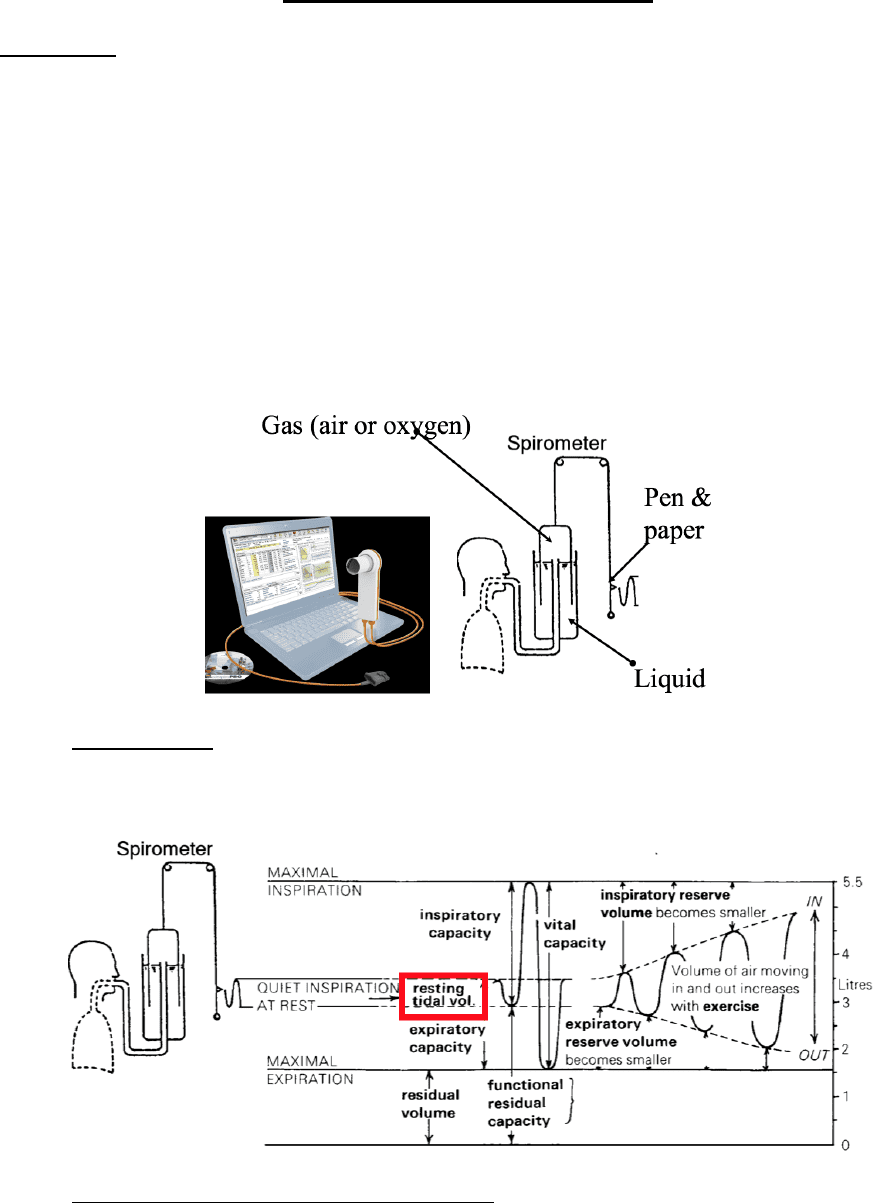

Spirometry
- Spirometry: a method to measure lung volumes
o Inhale and exhale through a filter that detects lungs volumes and utilizes a computer
o Old fashion is an upside down bell that is suspended in water and air in the bell is
connected to a person such that they can inhale and exhale
When the person exhales, the bell move sup
When the person inhales, the bell moves down
Bell is connected to a pen that moves up and down
Inhale pen moves up
Exhale pen moves down
o Works the same in both systems
- Tidal Volume: is the volume of air inhaled with each breath at rest
o Increases with exercise
o Not the full lung volume
- Minute Volume or Pulmonary Ventilation is the volume of air inhaled per minute
Tidal Volume X Frequency of Respiration (how many times/min person breathes)
find more resources at oneclass.com
find more resources at oneclass.com

Only pages 1-3 are available for preview. Some parts have been intentionally blurred.

- Example:
o Tidal Volume = 500 ml
o Frequency = 12 breaths/min
o Minute Volume = 6000 ml/min
o 6L of air go in and out of lung each minute

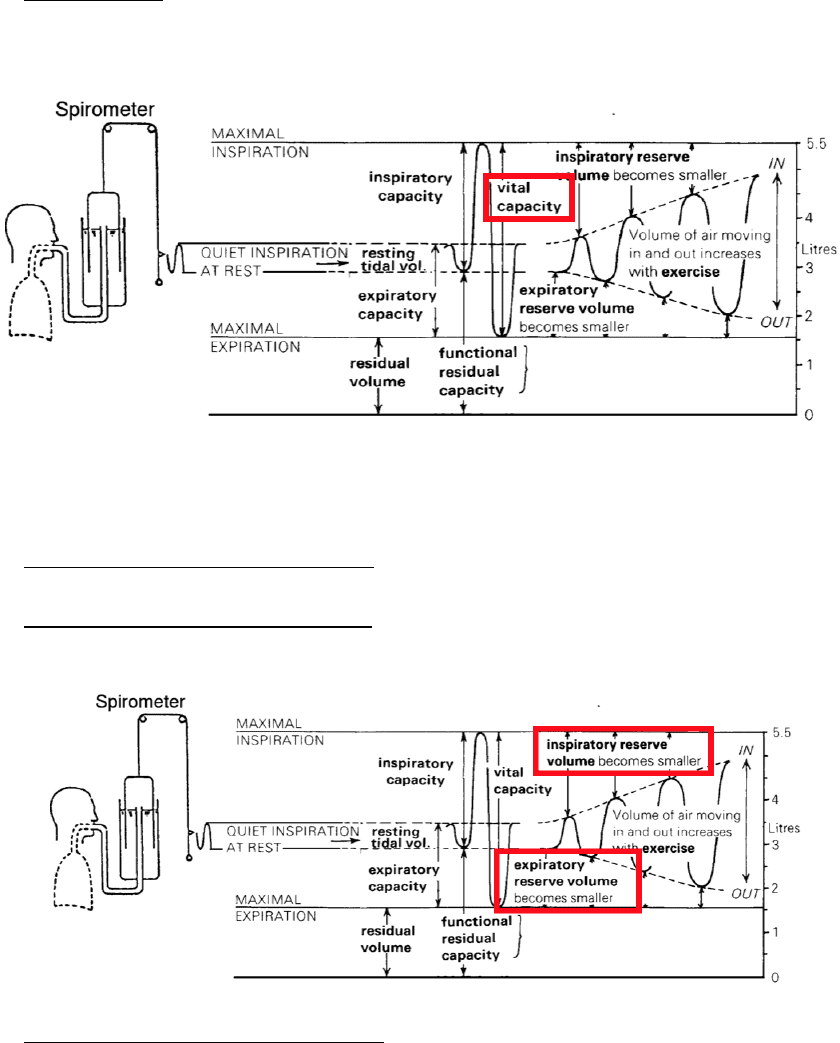

- Vital Capacity: is the volume of air that can be forcibly exhaled after a maximal inspiration
o Taking a breath in as deep as you can (max inspiration) and then exhale as much as
you can
- There is some reserve volume
o Look at how much air you can inhale in your normal breath vs. vital capacity, there
is a reserve volume where you can inspire more air than your resting tidal volume
- Inspiratory Reserve Volume (IRV): is the volume of air that can be forcibly inhaled
following a normal inspiration
- Expiratory Reserve Volume (ERV): is the volume of air that can be forcibly exhaled
following a normal exhalation
- Maximal Voluntary Ventilation (MVV): volume of air that can be moved into and out of the
lung in one min by voluntary effort
find more resources at oneclass.com
find more resources at oneclass.com

Only pages 1-3 are available for preview. Some parts have been intentionally blurred.

- Also called Maximal Breathing Capacity
- Can go from 6L/min to increasing tidal volume to get a maximum breathing capacity (heavy
exercise to get in a lot more air in lungs)
- Average person: Normal MVV is in the range of 125 to 170 liters per min

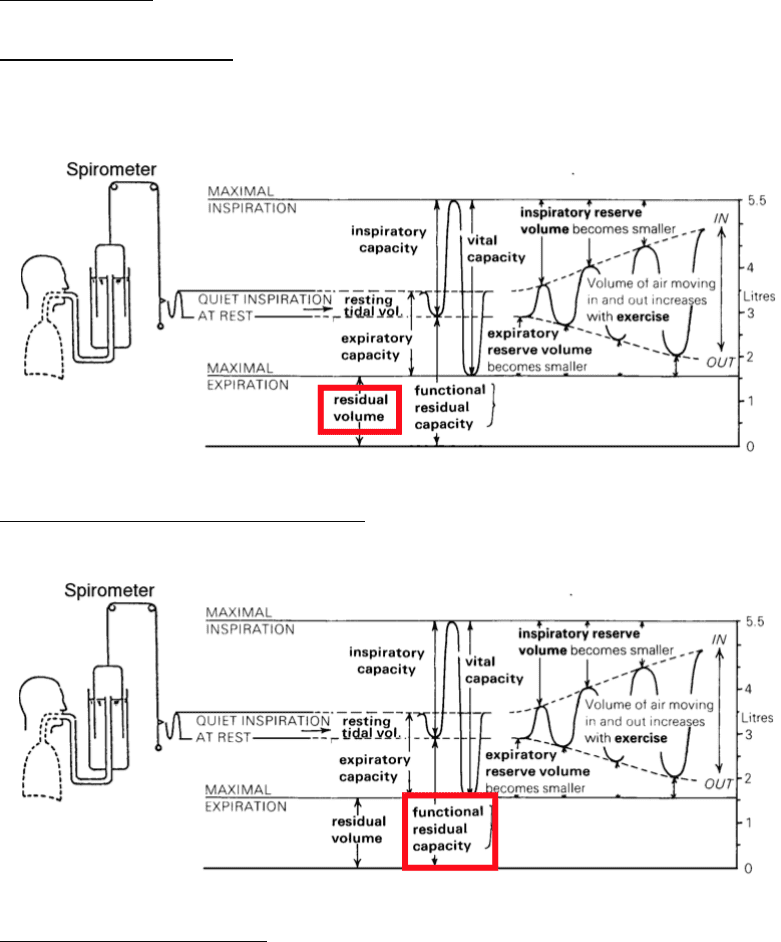

- Residual Volume (RV): is the volume of air remaining in the lungs after a maximal
expiration
o Cannot exhale all of the air in the lungs
- Functional Residual Capacity (FRC): is the volume of air remaining in the lungs at the end
of a normal expiration
- Total Lung Capacity (TLC): is the volume of air in the lungs at the end of a maximal
inspiration
o TLC = Vital capacity + residual volume
