Engineering Mechanics ENGG*1210, Winter 2013
Midterm Review
Assigned: Tuesday, February , 
-. e connected bar BC is used to increase the lever arm of the crescent wrench as shown.
If a clockwise moment of MA=  N ·m is needed to tighten the nut at Aand the extension
is d= mm, determine the required force Fin order to develop this moment.

Only pages 1-2 are available for preview. Some parts have been intentionally blurred.

Midterm Review

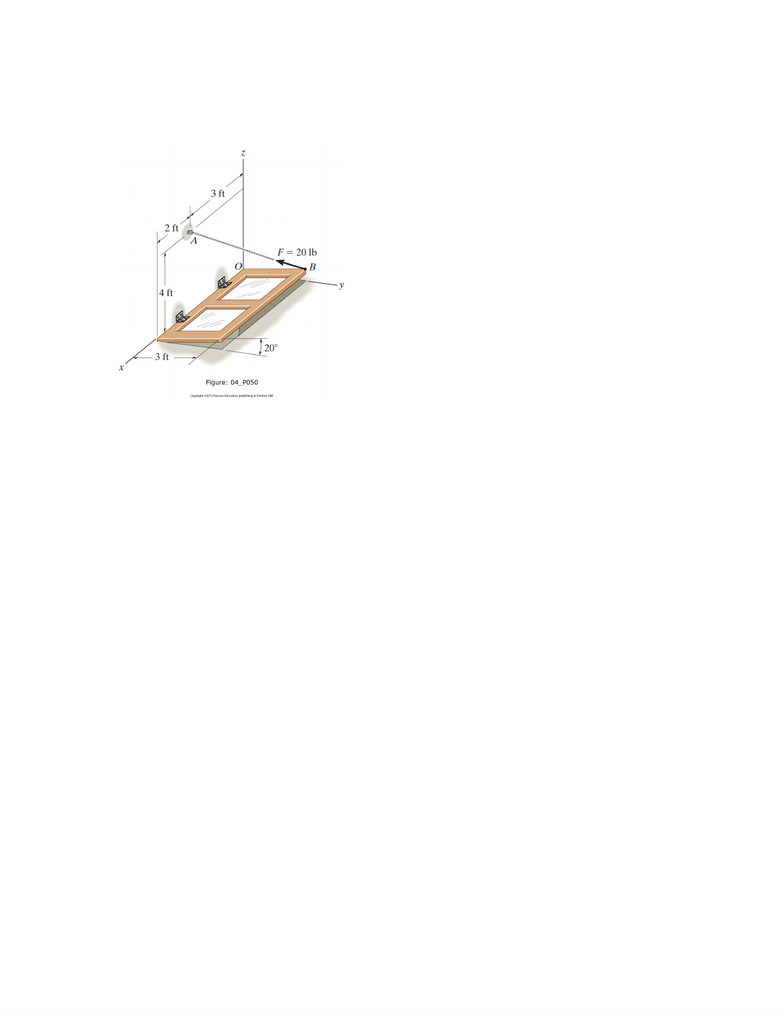

-. e chain AB exerts a force of  lb on the door at B. Determine the magnitude of the
moment of this force along the hinged axis xof the door.
You're Reading a Preview

Unlock to view full version

Only pages 1-2 are available for preview. Some parts have been intentionally blurred.

Midterm Review

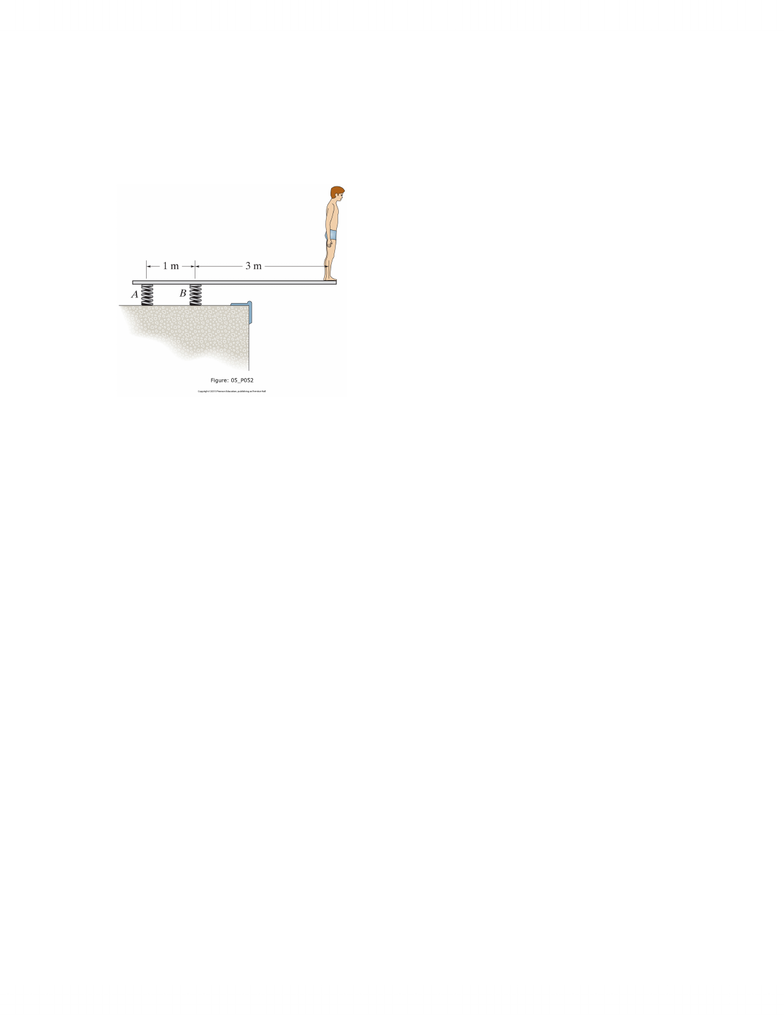

-. A boy stands out at the end of the diving board, which is supported by two springs Aand
B, each having a stiffness of k= kN/m. In the position shown, the board is horizontal.
If the boy has a mass of  kg, determine the angle of tilt which the board makes with the
horizontal aer he jumps off. Neglect the weight of the board and assume it is rigid.
