SCI 205 EXAM NOTES:
Chapter 2 The Anatomy of High-Fidelity Systems:
Building Blocks of a Sound System:
Sound Source
Preamplifier
Power Amplifier
Speakers
Summary of Terms:
RIAA Equalization Amplifier: A collection of electronic circuits which boosts and “equalizes” the
signal coming from the magnetic Phono cartridges. (Recording Industry Association of America)
is found in the preamp/control centre.
Chapter 3 Waves and Sound:
Frequency = 1/Period
Speed = Distance Travelled/Elapsed Time
Wavelength x Frequency = Wave Speed
Sound Intensity = 

Summary of Terms:
Condensations: regions along a sound wave where the pressure is largest. Also called crests.
Rarefactions: Regions along a sound wave where the pressure is the smallest. Also called
troughs.
Law of Refraction: When sound travels from a low-velocity medium into a higher velocity
medium the refracted sound will bend away from the normal. If the sound travels from a higher-
velocity medium into a lower-velocity medium, the refracted sound will bend toward the
normal.
Reverberation: Numerous reflections of sound which arrive close together and cannot be
perceived as individual echoes.
Reverberation Time: The time required for the reverberated sound to decay to one-millionth of
its original level after the speakers have been turned off. Typical reverberation times are
between 0.5 and 2.2 seconds.
Reverberation Unit: A component that will add reverberation to the sound when connected to
an audio system.
Ultrasonic: Sound whose frequency lies above the audible range of 20kHz.
Unlock document

This preview shows pages 1-3 of the document.
Unlock all 11 pages and 3 million more documents.

Already have an account? Log in
Chapter 4 Complex Waves and Interference:

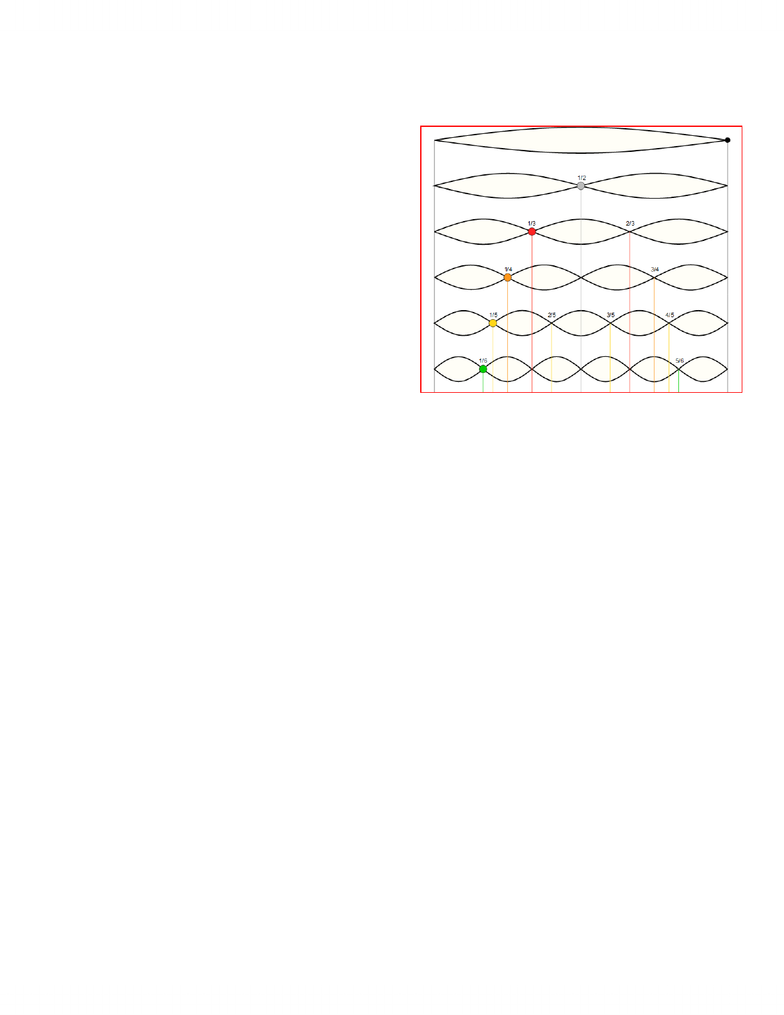

Fundamental (1st Harmonic)
1st Overtone (2nd Harmonic)
2nd Overtone (3rd Harmonic)
3rd Overtone ( 4th Harmonic)
4th Overtone (5th Harmonic)
5th Overtone (6th Harmonic)
Summary of Terms:
Diffraction: The bending of waves around objects or corners.
Fourier Analysis: A method, discovered by Joseph Fourier, that will resolve any complex
wave into a sum of simple sine waves which are harmonically related to each other.
Timbre: A term which describes the characteristic tonal quality of the sounds emitted by
a musical instrument. The timbre of a musical note is governed by the number and
relative amplitudes of the harmonics or overtones which are present.
Chapter 5: Decibels and You:
Summary of Terms:
dBW: a unit for measuring the power of an amplifier, in terms of decibels, relative t a reference
level of 1 watt.

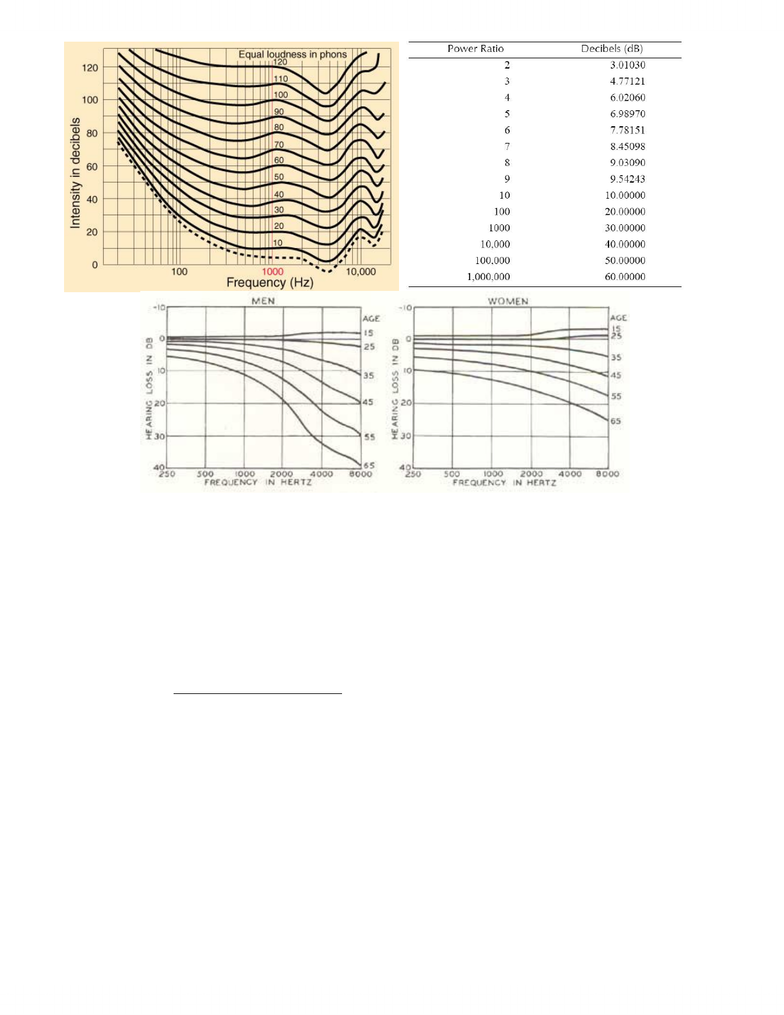

Fletcher-Munson Curves: A series of graphs which characterize the ears sensitivity to various
frequencies at different loudness levels.
Threshold of Hearing is 0dB Lowest sound produced which can be heard.
Unlock document

This preview shows pages 1-3 of the document.
Unlock all 11 pages and 3 million more documents.

Already have an account? Log in
Chapter 6- Loudspeakers:
Parts of A Speaker:
The Diaphragm (or cone)
The Flexible Edge
The Voice Coil
The Permanent Magnet
% Efficiency = 
 x 100%
Summary of Terms:
Acoustic Suspension: A loudspeaker design which permits good bass reproduction from a
relatively small-sized enclosure. The acoustic suspension systems utilize a floppy, highly
compliant cone suspension and the trapped air to provide the proper suspension characteristics.
They are generally of low-efficiency design, requiring relatively high amplifier powers compared
to the vented and horn enclosures.
Bass Reflex (Vented Enclosure, Phase Inverter, or Tuned Port) A loudspeaker design in which the
cone’s “back-surface wave” is sent out through a port in the face of the enclosure to reinforce
the bass output.
