MGOC20 Operations Management: A Mathematical Approach
Lecture 08
Ch3 - Project Scheduling AON Method, PERT, Job Crashing
Activity on Node (AON) Method
In AON method, each node represents an activity.

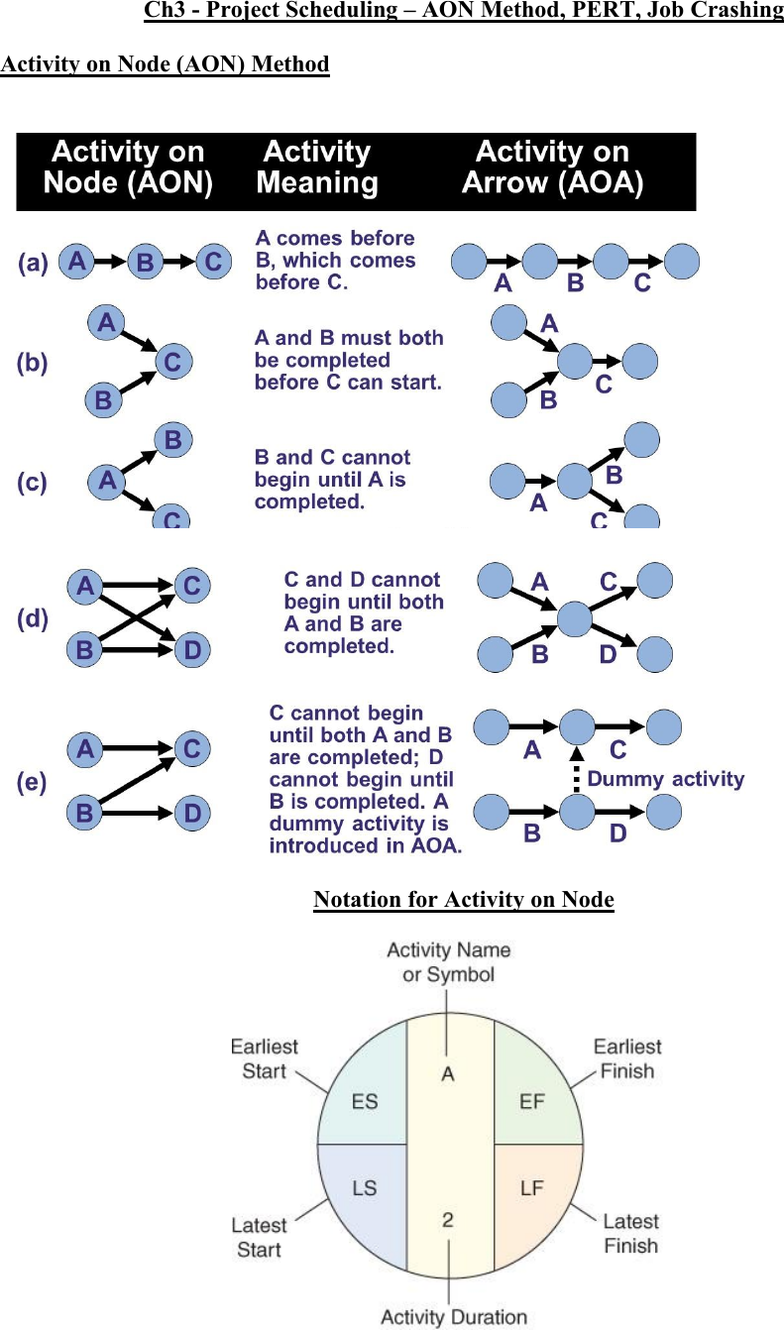

Notation for Activity on Node
Unlock document

This preview shows pages 1-3 of the document.
Unlock all 10 pages and 3 million more documents.

2
Example 1
Draw the network from Lecture 08 - Example 2 using the AON method. Compute the ES, LS,
EF and LF for each activity, determine the project completion time and critical path for project.
Activity
Duration
Depends on
A
1
-
B
3
A
C
6
A
D
2
B
E
5
C,D
F
6
B
G
8
B
H
2
G
I
1
E,F,H
Unlock document

This preview shows pages 1-3 of the document.
Unlock all 10 pages and 3 million more documents.

3
Example 2
Example 2
Draw the network from Lecture 08 - Example 3 using the AON method. Determine the project
completion time and critical path for the project.
Activity
Depend on
Duration
A
-
1
B
-
4
C
-
7
D
A
1
E
A
5
F
B,D
1
G
C,E,F
1

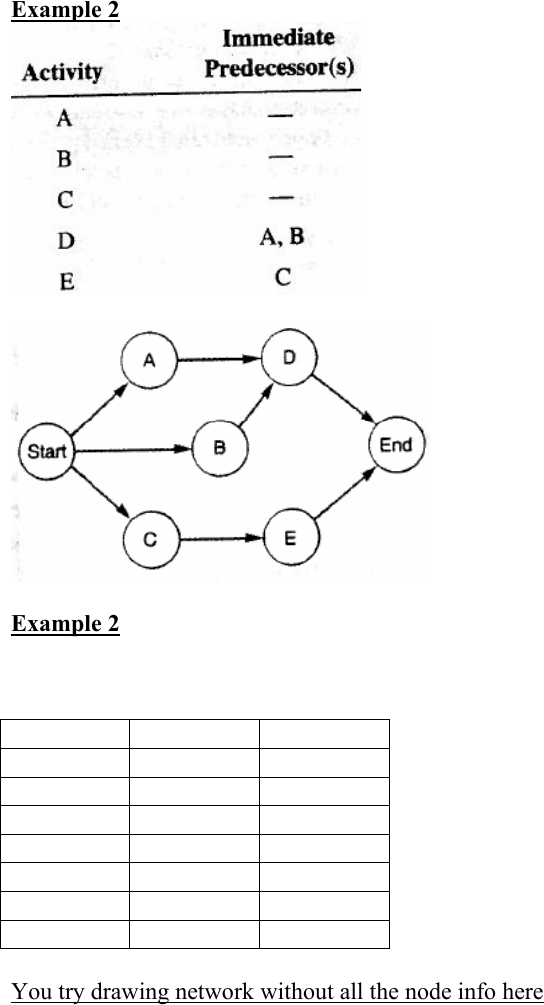

You try drawing network without all the node info here
