TCP/IP Core Protocols
TCP/IP a suite of protocols including:
TCP, IP, UDP, ARP, and many others
TCP/IP is open and routable

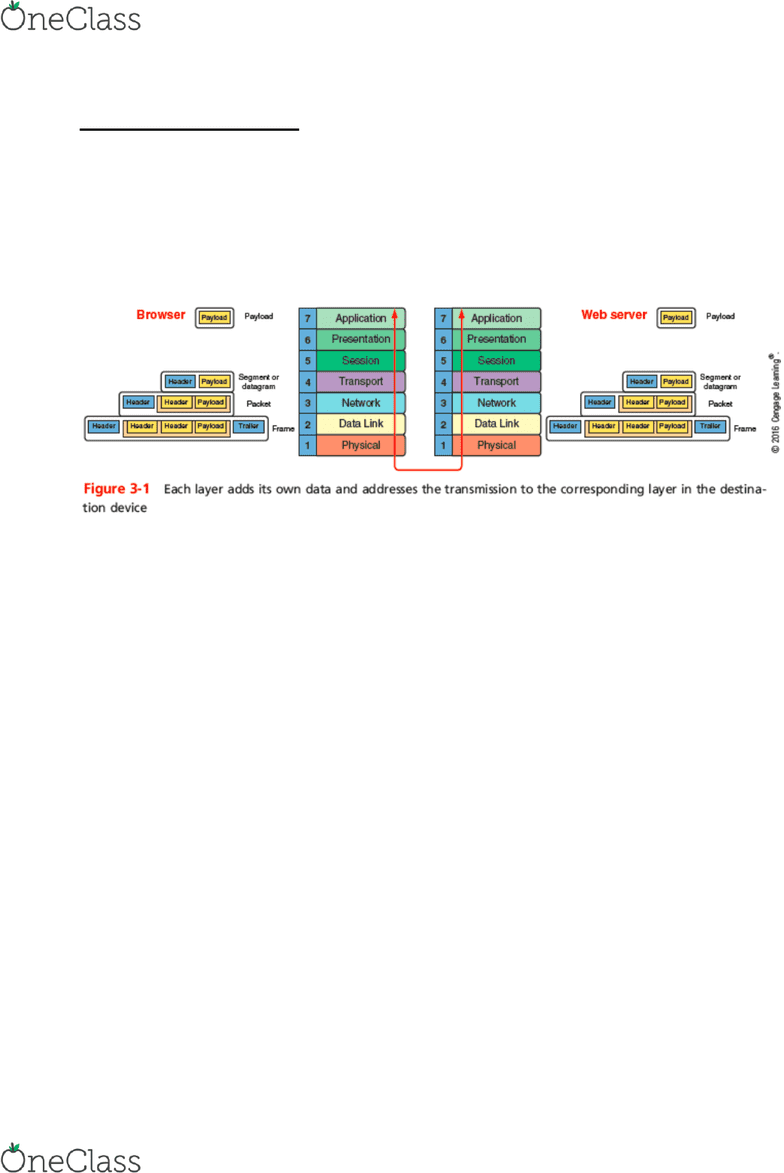

Protocols add a header to data inherited from the layer above
Layers 7,6, and 5 data and instructions, known as payload, are generated by
applications running on source host
Layer 4 usually TCP or UDP adds a header to the payload
Includes a port number to identify the receiving app
Layer 3 network layer adds it own header and becomes a packet
Layer 2 packet is passed to Data Link layer on NIC, which encapsulates data
with its own header and trailer, creating a frame
Layer 1 physical layer on the NIC receives the frame and places the
transmission on the network
Receiving host de-encapsulates the message at each layer in reverse order and
presents the payload to the receiving applications
Connectivity devices are specialized devices that allow two or more networks or
multiple parts of one network to connect and exchange data

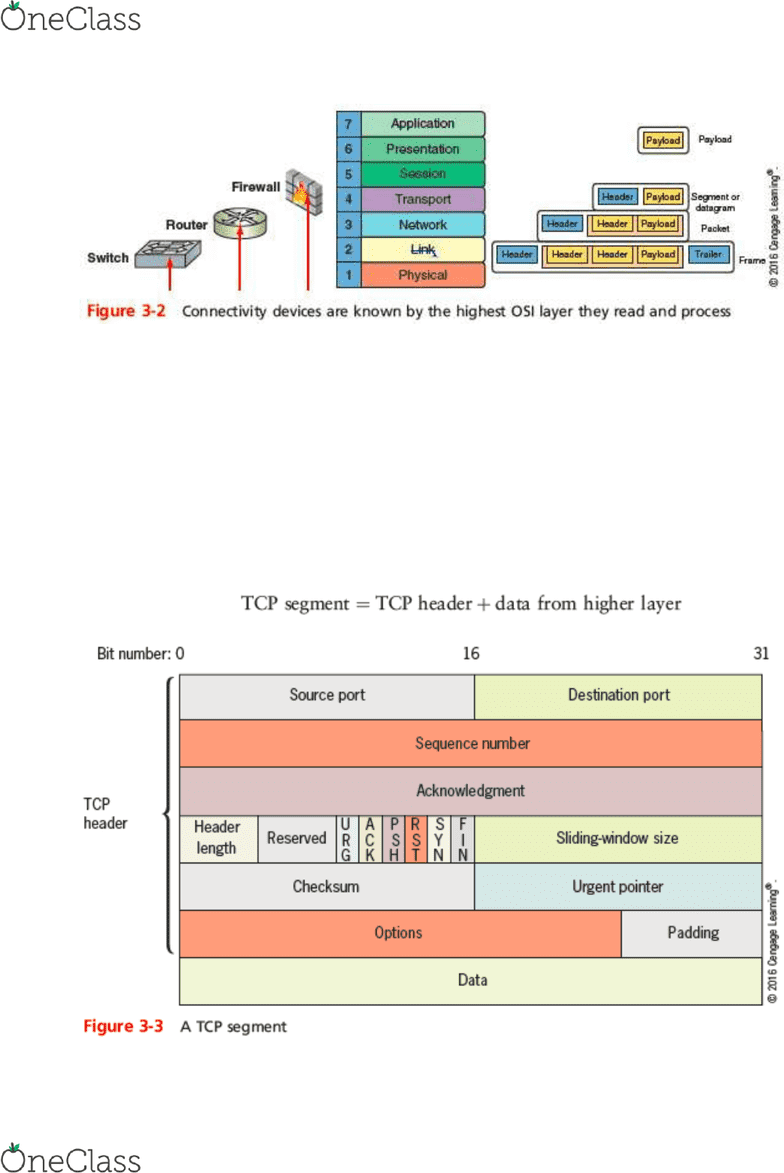

Known by the highest OSI layer they read and process
find more resources at oneclass.com
find more resources at oneclass.com
Unlock document

This preview shows pages 1-3 of the document.
Unlock all 12 pages and 3 million more documents.

Already have an account? Log in
TCP (Transmission Control Protocol)
TCP operates in the transport layer of OSI model
Three characteristics of TCP
Connection-oriented protocol TCP ensures that a connection or session
is established by using a three step process called three-way handshake
Sequencing and checksums TCP sends a character string called a
checksum that is checked by the destination host along with a sequence
number for each segment
Flow control gauges rate of transmission based on how quickly recipient
can accept data
find more resources at oneclass.com
find more resources at oneclass.com
Unlock document

This preview shows pages 1-3 of the document.
Unlock all 12 pages and 3 million more documents.

Already have an account? Log in

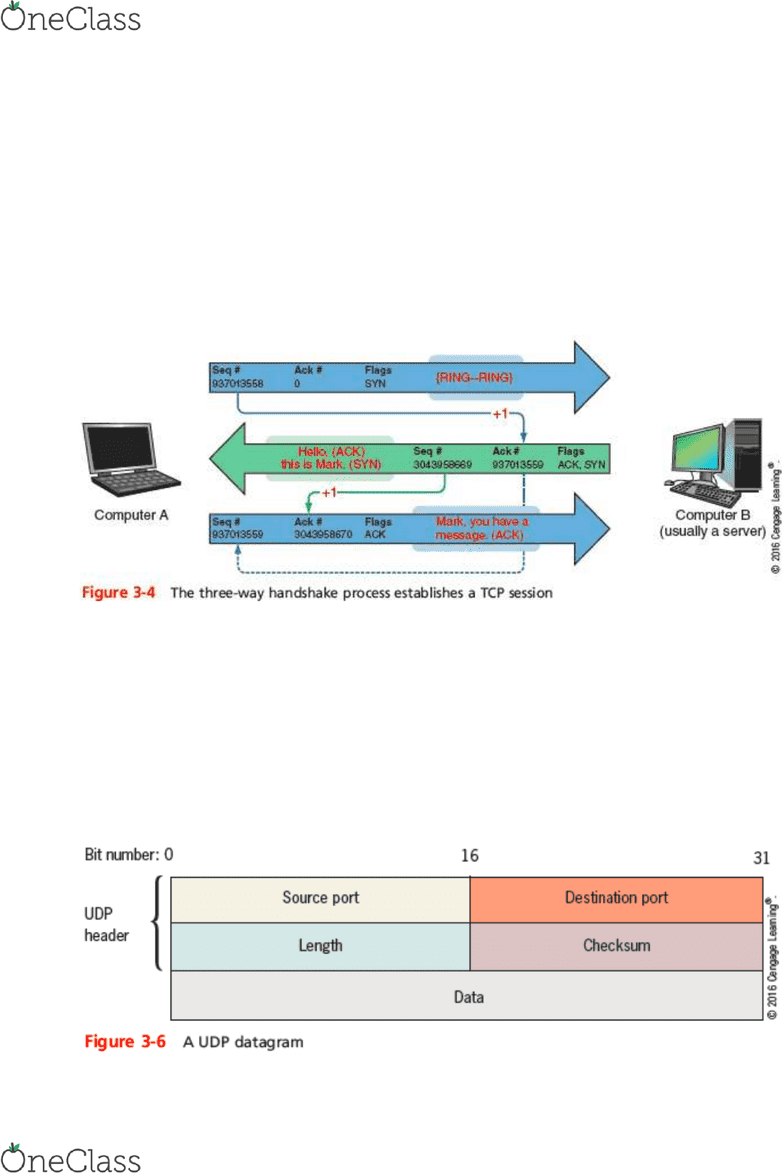

TCP Three-Way Handshake
Three transmission send before data transmission:
Step 1 request for a connection (SYN)
Step 2 response to the request (SYN/ACK)
Step 3 connection established (ACK)
After the three initial messages, the payload or data is sent
Sequence numbers will be increased by the number of bits included in each
received segment
Confirms the correct length of message was received
UDP (User Datagram Protocol)
UDP provides no error checking or sequencing
Makes UDP more efficient than TCP
Useful for live audio or video transmissions over the internet
Also more efficient for carrying messages that fit within one data packet
A UDP header contains only four fields: source port, destination port, length, and
checksum
Use of checksum field in UDP is optional in IPv4, but required in IPv6
