Using Language Templates with Xilinx
Implement the following functions:
F = Σ(A,B,C,D)(0,3,5,6,9,10,12,15)
G = Σ(A,B,C,D)(1,2,5,6,8,11,12,15)
using multiplexers and decoders.
Digital Inputs:
Data Inputs: A(SW3), B(SW2), C(SW1), D(SW0)
Select Lines: None.
Clock: BTN-EAST
Digital Output:
F(LED-5) & D(LED-2)
Truth Table:
A
B
C
D
F
D
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
1
0
0
1
0
1
1
0
0
1
1
0
1
0
0
1
0
1
1
0
0
1
1
0
1
0
0
1
1
0
0
1

Only pages 1-3 are available for preview. Some parts have been intentionally blurred.

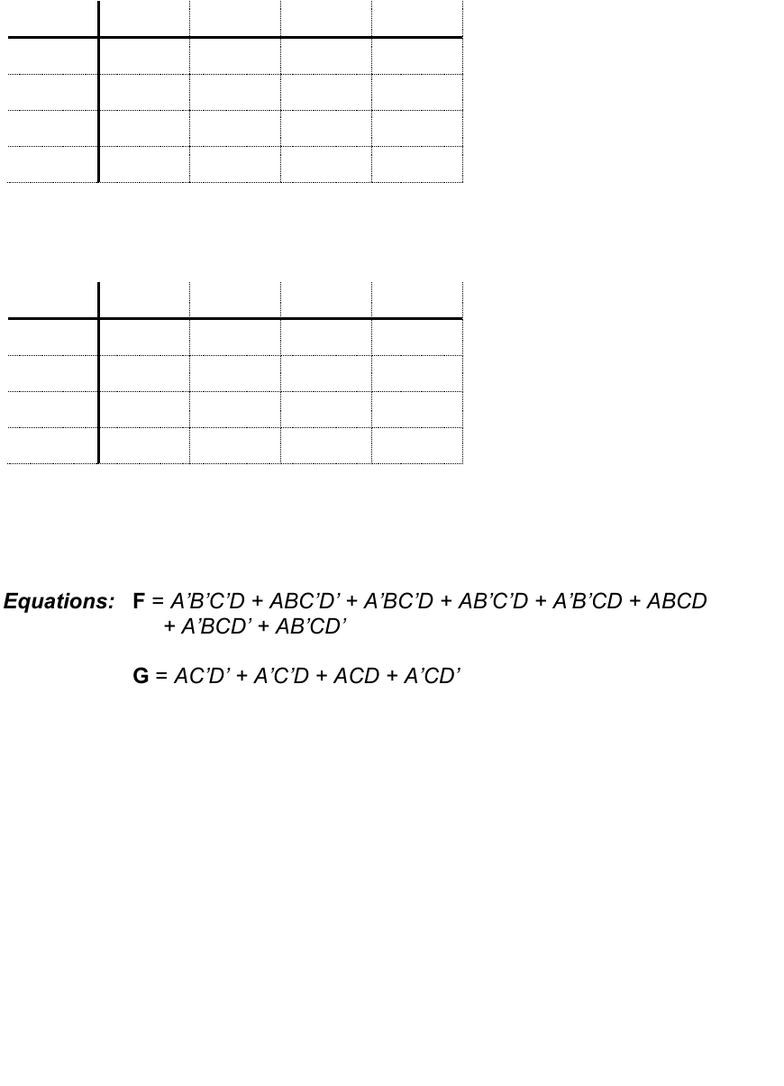

Karnaugh Maps:
AB|CD
00
01
10
00
1
0
0
01
0
1
1
11
1
0
0
10
0
1
1
Map for F
AB|CD
00
01
10
00
0
0
1
01
1
1
0
11
0
0
1
10
1
1
0
Map for G
Equations: F = ABCD + ABCD + ABCD + ABCD + ABCD + ABCD
+ ABCD + ABCD
G = ACD + ACD + ACD + ACD

Only pages 1-3 are available for preview. Some parts have been intentionally blurred.

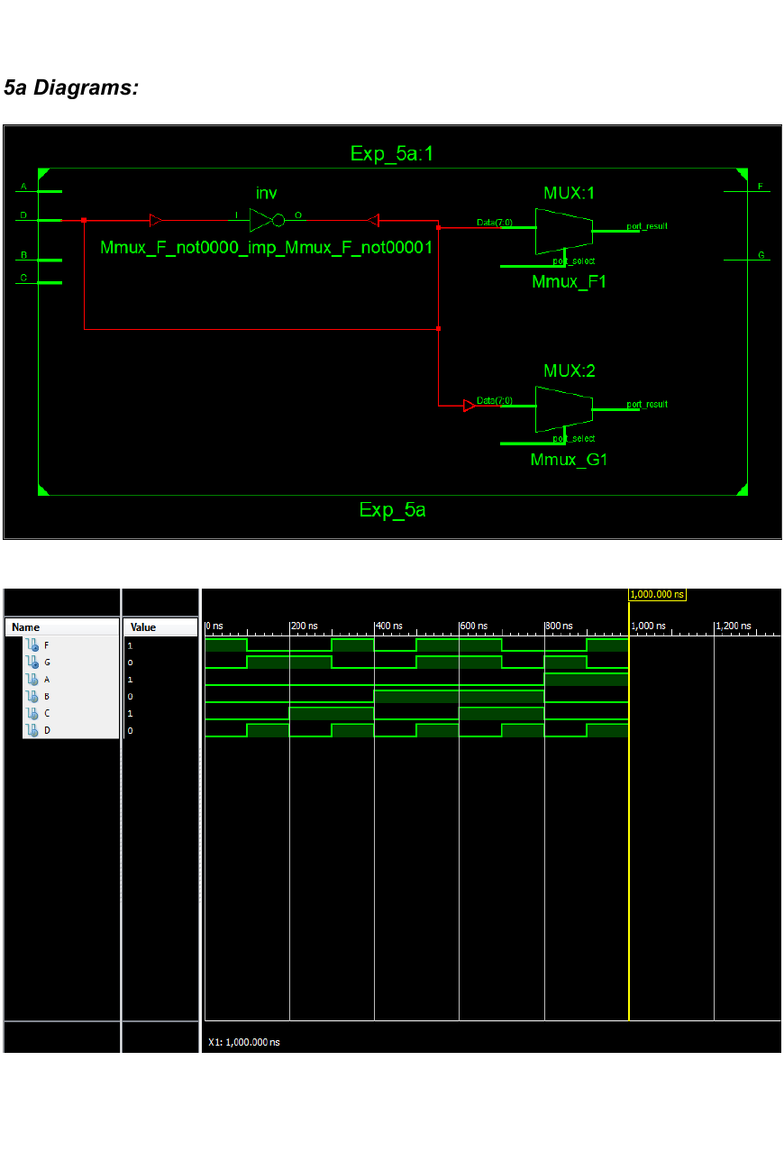

Logic Diagrams:
