Vending Machine using Verilog
Ajay Sharma
3rd May 05

Only pages 1-3 are available for preview. Some parts have been intentionally blurred.

Contents
1 Introduction 2
2 Finite State Machine 3
2.1 MOORE.............................. 3
2.2 MEALY .............................. 4
2.3 StateDiagram........................... 4
3 Verilog Code of the Machine 6
4 TesT Bench 10
5 Output 14
6 Explaination of Output 17
1

Only pages 1-3 are available for preview. Some parts have been intentionally blurred.

Chapter 1
Introduction
Vending Machine is a soft drink dispensor machine that dispenses drink based
on the amount deposited in the machine. It accepts all the coins ie: Nickel(5
cents), Dime(10 cents), Quarter(25 cents). Till it recieves 40 cents it will not
dispense anything. After it has recieved 40 cents it will dispense a softdrink.
Any amount above that will be given back as a change.

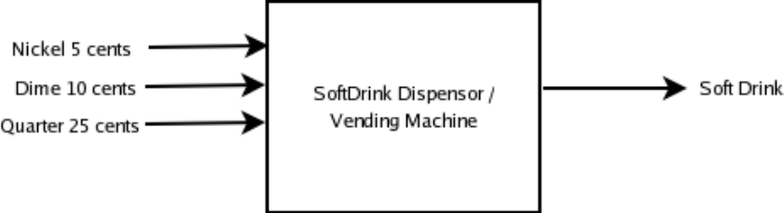

The diagram below is the block diagram of the vending machine.The in-
puts are the coins and the output is the drink.
In the next chapter we will see the how we can encode the state machine
in a state diagram and draw it.
