ME 3143

Fall 2011

Problem Set 3 Solution

1. Simulink™ is a graphical user interface to Matlab™ for dynamic

simulations. System models can be built from block diagrams using

libraries of predefined function blocks; an example is shown at the bottom

of the page that represents the differential equation:.

!

! "

( )

=!!

! "

( )

!

"

( )

=#!$

Simulink™ can pull data in from Matlab™ and send data to Matlab™ for

plotting, so the full capabilities of both programs are available.

(a) Build the model shown at the bottom of the page:

i. Initiate Simulink™ by typing: simulink in the

Matlab™ command window;

ii. Open a new model window in Simulink™, if one does

not open automatically;

iii. Find the blocks for the model in different libraries. The

Integrator will be in the Continuous Library. Others will

be as follows: Gain (), Scope and To Workspace

(Sinks Library), and Clock (Sources Library). Drag

and drop the blocks in your model window. Connect

the blocks by dragging the port on a block to the one

it should be connected to – a line representing a link

will form and the arrowhead will appear if the link is

made;

Only pages 1-3 are available for preview. Some parts have been intentionally blurred.

ME 3143 F’11 Problem Set 3 Solution

2

iv. Block properties are set by clicking on the block to

open a properties window. Set the gain as shown and

the initial condition on the Integrator block;

v. The Scope and To Workspace blocks are used for the

output of the simulation. Doubleclicking on a Scope

block will open a display that shows the output of the

simulation as a function of time. The To Workspace

blocks transfer the data to Matlab and set up a

variable containing the data there so that it can be

processed further or plotted.

(b) Directly integrate the differential equation. Store your result

and the corresponding time values in Matlab™ as:

y(1,:) = A*exp(-[0:0.1:4]/

!

);

t1 = [0:0.1:1.0];

What is the time constant, τ, for the system?

(c) Use Simulink™ to numerically integrate the equation using

the Euler integration scheme (using fixed step integrations

and the solver ode1 from the Configuration Parameters

menu). Run simulations for integration time steps of

!

,

0.1

!

,

0.01

!

, and

0.001

!

where

!

is the time constant for the

system. Save the time (t2,t3,t4,…) and output vectors

(y2,y3,…) for each of your five simulation runs. In Matlab™,

save your data in the same array as the solution from (b)

y(2,:) = y2(:);

y(3,:) = y3(:);

(d) Compare your result to the direct integration from (b) by

plotting them on the same plot using the Matlab™ plot

command:

plot(t1,y(1,:),t2,y(2,:),t3,y(3,:),t4,y(4,:),t5,y(5,:));

You can label and grid your plot using legend, xlabel, ylabel,

and grid commands. Linetype and line color are controlled in

the plot command.

What differences do you see between the exact solution and

the numerically integrated solutions? Does it change with the

size of the integration time step?

Only pages 1-3 are available for preview. Some parts have been intentionally blurred.

ME 3143 F’11 Problem Set 3 Solution

3

Given: A first order differential equation.

Find: (a) Build the Simulink model; (b) Integrate the homogeneous

equation directly and plot the results; (c) Use the Simulink model to

numerically integrate the equation using time steps of

!

,

0.1

!

,

0.01

!

,

and

0.001

!

; (d) Plot (b) and (c) on the same plot.

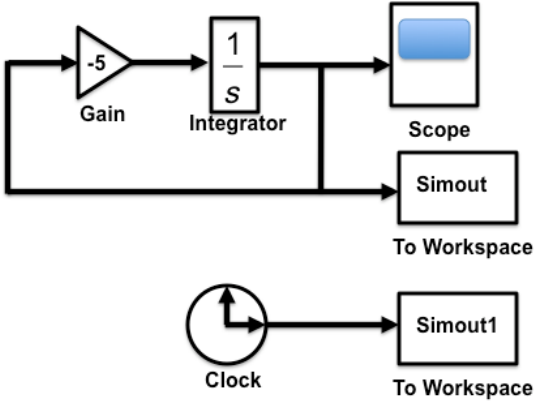

Solution: (a) The given block diagram is shown below with key

variables labeled. The lines in a block diagram represent variables or

signals and the blocks are operations that are performed on those

signals.

(b) The differential equation for the system is:

!"

!#

=!!"#

"

"

!"

"

=!!"#

!#

"$%

"

=!!"#

#

+

$

&

Rearranging and integrating yields the result on the right. Take the

exponential of both sides of the equation:

!

!"

"

=

!

!#$%

#

+

$

&"

"

'

#

(=

!

$

&

!

!#$%

#

"

"

'

#

(=

$

)

!

!#$%

#

Apply the initial conditions:

!

!

( )

="# =

"

$!

! #

( )

="#

$

"#%!

#

The time constant, τ, for the system is 0.20 seconds and the constant,

A, is 15. Use those to generate the data in Matlab™ and plot the

analytical solution

y(1,:) = 15*exp(-[0:0.1:1.0]/0.20);

t1 = [0:0.1:1.0];

The plot is shown on the next page. The exponential curve should

decay by 98% after four time constants (t = 4

τ

) and 99.3% after five

time constants, which it appears to do.

(c) In order to store all of the amplitude values, including the exact solution

from (b) and the numerically integrated results from Simulink, in a

single array it must be sized to hold the longest vector – the one for the

smallest integration time step. Use the size command to find out the

length of each amplitude (and time) vector, then define the matrix y =

zeros(5,nmax). This creates an array 5 X nmax filled with zeroes that

can be replaced by the actual data. Replace each row with the

Simulink output as follows:
