The Queue ADT
CMPT 115 lecture notes
Notes written by Michael Horsch, Mark Eramian, Ian McQuillan, Lingling Jin, and Dmytro Dyachuk
Objectives
After this topic, students are expected to
1. describe what queues are in your own words.
2. deﬁne the data structure of the Queue ADT.
3. associate the data structure of the Queue ADT and the List ADT.
4. deﬁne and implement the operations of the Queue ADT.
5. associate the operations of the Queue ADT and the List ADT (reuse some operations in the List ADT).
6. analyze the complexities of the operations of the Queue ADT.
7. apply the Queue ADT in diﬀerent applications.
Outline
Contents
1 Queues 1
2 Applications of Queues 2
2.1 Buering ............................................... 2
2.2 ProcessScheudling.......................................... 3
3 Queue ADT 5
3.1 Time Complexity of Queue Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
1 Queues
A Queue
A queue is another type of ordered, linear list.
Like stacks, they are restricted in the way that we can insert and delete from them.
A familiar concept: a ﬁrst-come ﬁrst-serve lineup.
Anybody who joins the lineup, joins at the end.
The people who leave the lineup, do so at the front.
Queues are known as a ﬁrst-in ﬁrst-out (FIFO) data structure.
The ﬁrst element which gets added to the queue is going to be the ﬁrst element which comes out of
the queue.
1

Only pages 1-2 are available for preview. Some parts have been intentionally blurred.

Queues

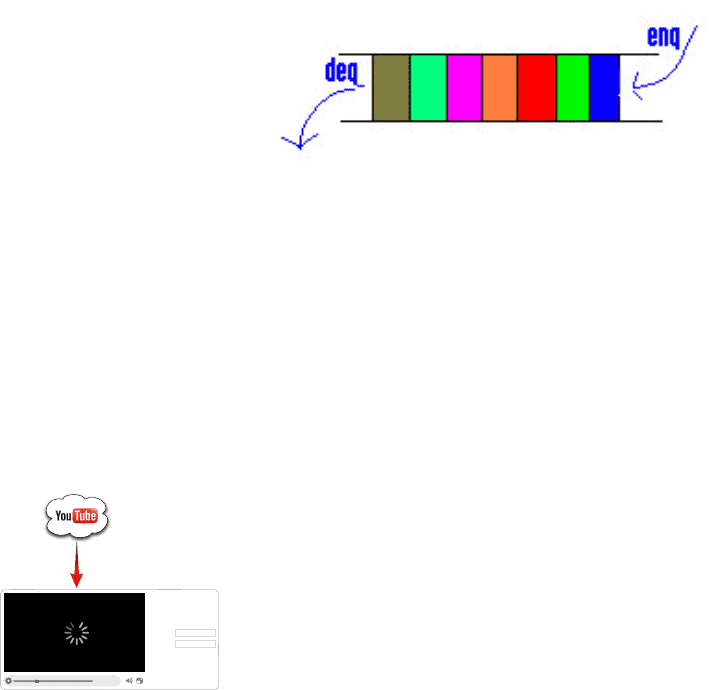

Deleting from the front of the queue is known as a dequeue. We can dequeue the front element from
the queue.
Adding to the back of the queue is known as an enqueue. We can enqueue some new element onto the
back of the queue.
These are the only ways in which we can insert and delete from the queue.
Picture from http://www.cs.mcgill.ca/ cs251/OldCourses/1997/topic6/
2 Applications of Queues
Buﬀering
Process Scheduling
2.1 Buﬀering
Something about cats
This is another video about cats
because CATS.
0:00 / 4:59
URL
Embed
YouTube sends video data ("producer"); video player displays data ("consumer")
Variables that aﬀect video experience:
Resolution of video (320, 720, 1080p, HD, etc)
Network lag, varies over time ("data delivery time")
Computer speed
Video data is buﬀered: accumulated to allow smooth(er) viewing.
Program P (e.g., YouTube) produces some data elements.
Program C (e.g., viewer) consumes those data elements.
Data elements (e.g., video) are communicated in pieces.
Potential problems:
If P produces faster than C can consume, P will have to wait for C.
2
###### You're Reading a Preview

Unlock to view full version

Only pages 1-2 are available for preview. Some parts have been intentionally blurred.

If C consumes faster than P produces, C will have to wait.
Communication rate varies over time (sometimes faster/slower)
A buﬀers allow more than one element to be "in communication" at the same time.
This potentially reduces the amount of time either program A or B has to wait for the other.
It is particularly eﬀective if A and/or B produce/consume data in bursts.
Buﬀers are built using queues, because:
In order to preserve communication order, data must be removed from the buﬀer in the same
order in which it was put in.
We aren’t allowed to read from an empty buﬀer, or write to a full buﬀer.
Buﬀers are used anywhere the ﬂow of data needs to be “smoothed”:
streaming video
network communication
data transfer (“input/output") within computer system (e.g., console input&output, ﬁle input&output)
2.2 Process Scheudling
Queues are very common in operating systems for process scheduling in multiprocessing systems.
What is a multiprocessing system?
Multiple programs all running "at the same time", sharing the same CPU(s).
If there is one CPU and several programs, are they really all running at the same time?
What is process scheduling?
When, and for how long, (and on which processor) does a program get to run?
In other words, process scheduling seeks to share limited CPU resources between multiple processes
in a fair way.
Operating systems manage processes by storing all of the information about a process in a structure
called a process control block (PCB).
In the simplest form of scheduling, the process control blocks are placed on a queue. When a PCB
gets to the front of the queue, that process gets to run.
New processes are enqueued on the runnable queue.
When a process makes it to the front of the runnable queue, it runs for a ﬁxed amount of time, or until
it releases the CPU on its own (whichever comes ﬁrst).
A process may release the CPU early if it terminates, or enters an I/O wait state, etc.
A process that uses its full time gets re-enqueued on the tail of the runnable queue.
Processes that stop to wait for I/O are enqueued on an I/O wait queue (depending on kind of I/O).
Processes that are dequeued from an I/O wait queue (because their I/O is done) are enqueued on an
auxilliary runnable queue. This queue has priority over the normal runnable queue.
3
