How to Design Programs – Course Notes By: Ella Chen

Module one: Introduction to CS 115

Section 2: Numbers, Expressions, Simple Programs

2.1 Numbers and Arithmetic

Every Scheme expression is in the form (operation A … B).

Examples on mathematical operations:

- (sqrt A): square root of A

-(expt A B): A^B

- (remainder A B): remainder of A/B

- (quotient A B): quotient of A/B

- (log A): natural logarithm of A

- (sin A): sine of A radians

2.2 Variables and Programs

Defining fuctions in mathematcs:

-(define (function-name variable1 variable2…) (expression))

-E.g. (define (area-of-circle r)

(* 3.14 (* r r))

Characteristics of fuctions:

-Changing names of parameters does not change what the function does.

- The same parameter name can be used in different functions.

- The order of arguments must match the order of the parameters in the definition

of the function.

Defining constants

- (define k 3): k = 3

- (define p (* k k)) after (define k 3): (* k k) gives 9 and p is bound to 9.

Using substitution

-(define (f x) (* x x)): defines function f which consumes one numerical value;

-(define (g x y) ( - x y)): defines function g which consumes two numerical values;

- (g ( f 2) ( g 3 1)): in the form of (g x y) and x = (f 2) and y = (g 3 1).

Tracing a program

- A step-by-step simplification by applying substitution rules.

-E.g. (define (term x y) (* x (sqr y)))

(term (- 5 3) (+ 1 2)) => (term 2 (+ 1 2))

=> (term 2 3)

Only pages 1-3 are available for preview. Some parts have been intentionally blurred.

=> (* 2 (sqr 3))

=> (* 2 9) => 18

The data type image (you need the world.rkt teachpack)

- use data type other than numbers

- (define image1 (rectangle 35 50 ‘solid ‘red))

- (define image2 (circle 10 ‘solid ‘blue))

- (overlay image1 image2)

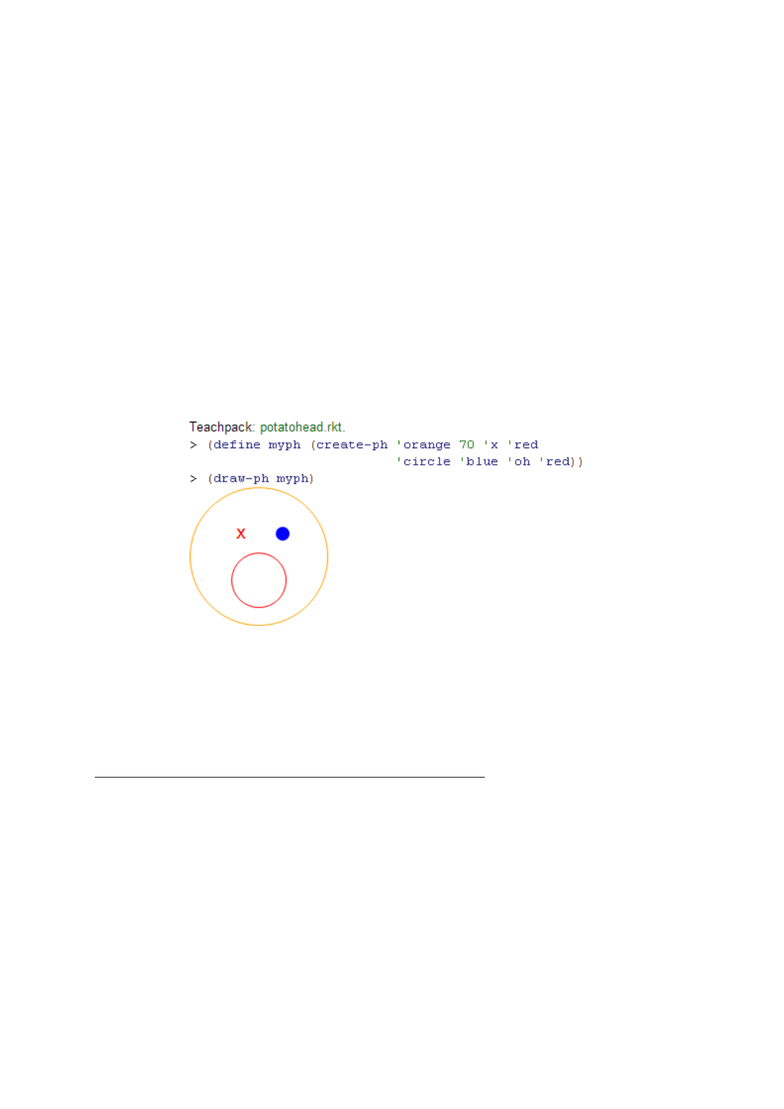

The data type Potatohead (ph) (you need the potatohead.rkt teachpack)

- defines a head with the following attributes:

- colour, size (of the outer circle)

- left eye type, left eye colour

- right eye type,right eye colour

- mouth type, mouth colour

- the function consumes both numbers (for size) and symbols (for types and

colours).

****************************************************************************************************

************************************END OF MODULE ONE************************************

Module 2: The Design Recipe

Section 2: Numbers, Expressions, Simple Programs

2.5 Design Recipe

Comments

- information important to humans but ignored by the computer.

- Compared with CODE: code is anything that is not a comment; machine-readable.

- “;; ”: starts a line that is a comment.

- “; ”: indicates that the rest of the line is comment.

Three Comment Components of Design Recipe

- Contract: a formal description of what type of arguments the function consumes

and what type of value it produces.

;; function-name: type1 type2 type3 … typek -> type-produced

Only pages 1-3 are available for preview. Some parts have been intentionally blurred.

(inputs) (output)

- Types in contracts:

- Scheme data types: num (any numeric value), image;

- User-defined data types: e.g. ph (for potatohead)

- int: integers

- nat: natural numbers (including 0)

- string: the function consumes a string

- posn: the function consumes a structure

- any: for any Scheme value

- to further specify restrictions:

- use “[ ]”, e.g. int[>=6]: integers that are greater than 6

string[len>=1]: a string of length at least 1

int[>=0,<=5]: integers from 0 to 5

- Purpose: a description of what the program consumes, what the the parameters

represent and what the porgram produces.

- Examples: illustrates the use of the program;

(function-name: argument) => produced

Test of a Function

- Use (check-expect (function-name argument) expected-output) and hit Run.

- Consider all possible cases. It’s about the quality and coverage of tests instead of

quantity.

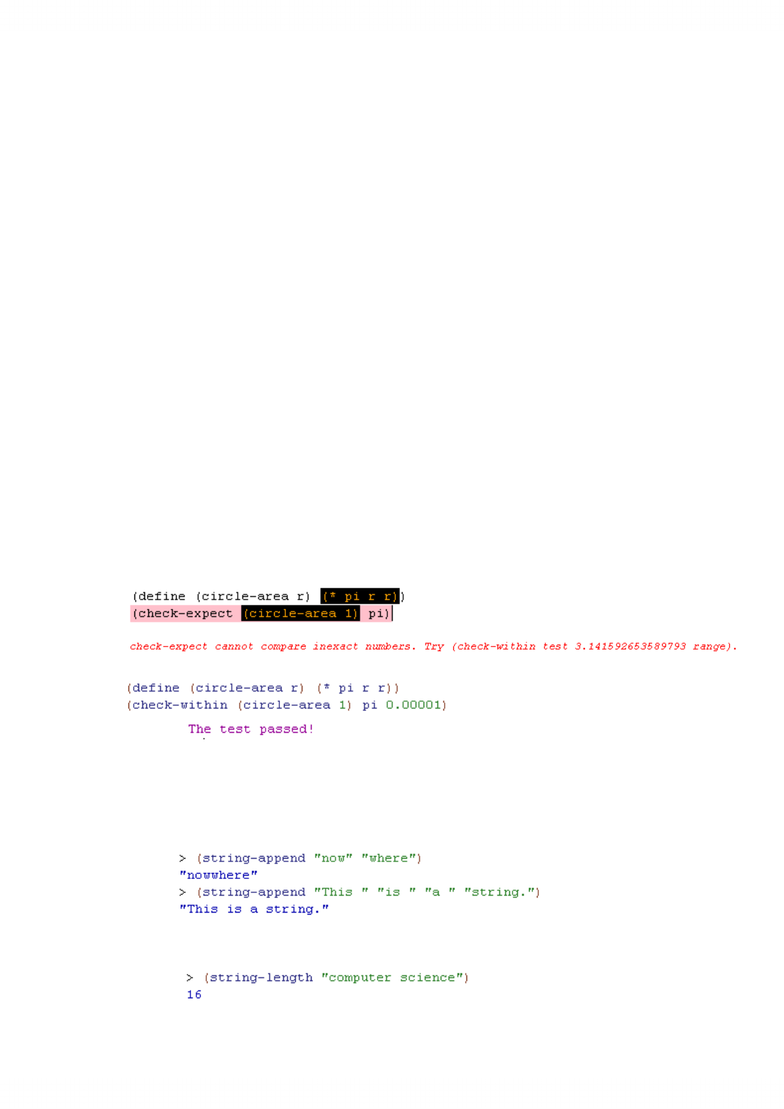

- Check-expect only work with exact numbers. Hence the following code will result

in an ERROR:

- To avoid errors caused by inexact values, use check-within:

The Data Type String

- A string is a value made up of letters, numbers, blanks, and puctuation marks, all

enclosed in quotation marks.

- String fuctions:

- string-append: combines strings into one single string

- string-length: measures the length of a string (counts the number of

characters in the string consumed) and produces a number
