Document Summary

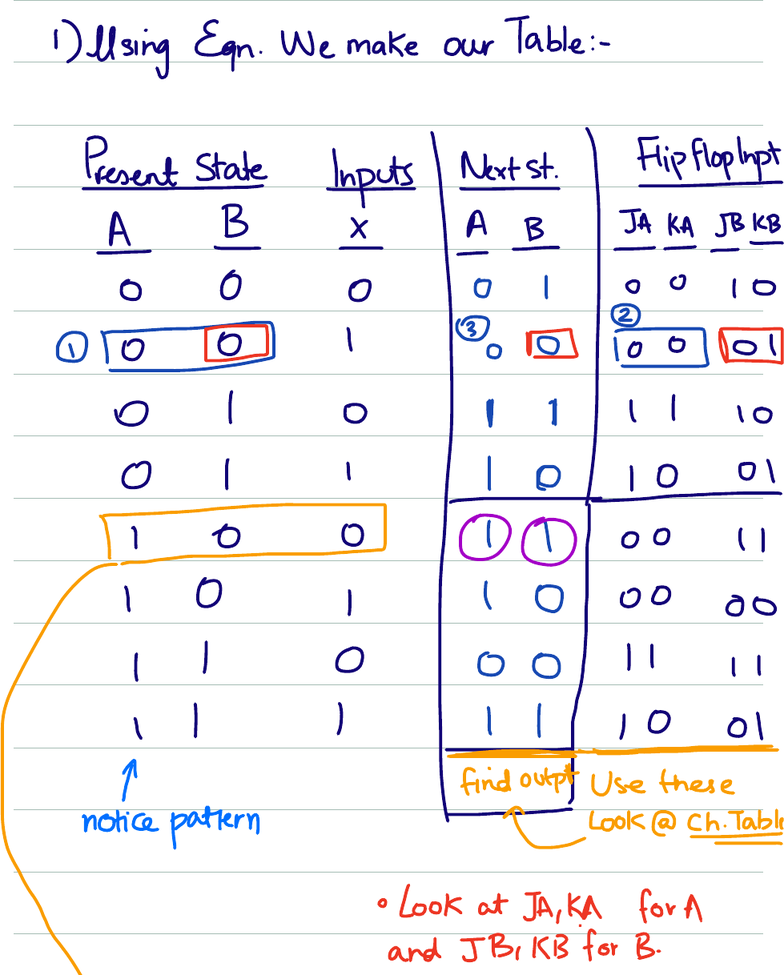

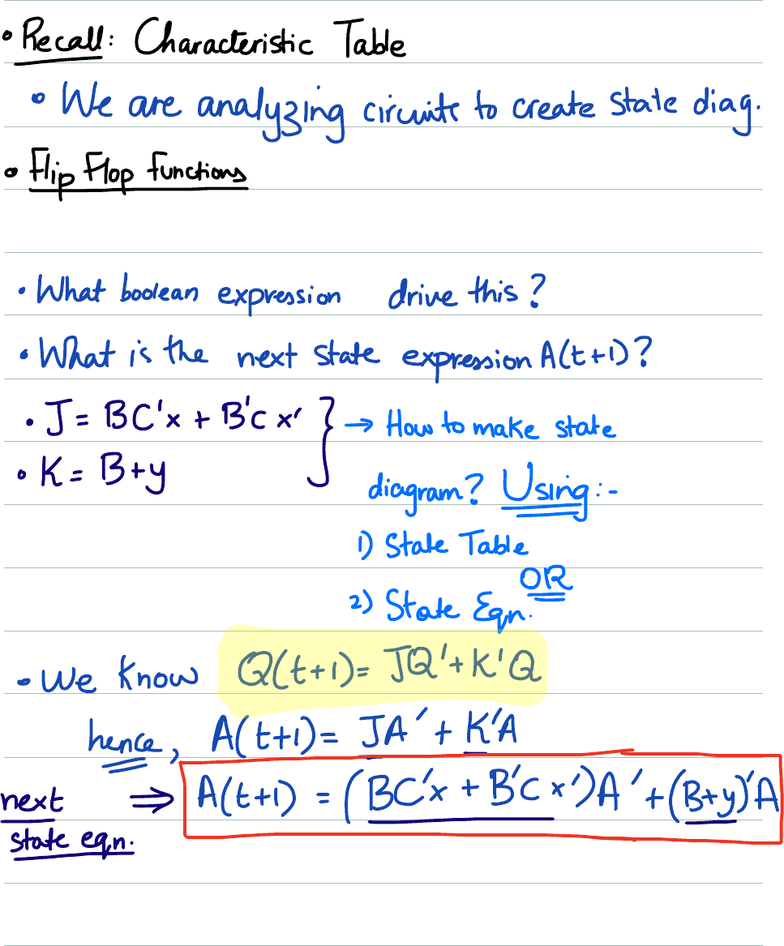

Announcements: thanksgiving lab makeup only two students requested accommodation due to con ict, final exam - see registrar to con rm. T: q(t+1) = t q = tq" + t"q. Substitute the boolean expressions for j & k. Jb = x" kb = xa" + x"a. How do you determine next state: flip- op input equations to derive these inputs, then use these inputs with the jk characteristic table to determine next state, flip- op next state equations to determine next state. How do you determine next state: flip- op input equations to derive these inputs, then use these inputs with the jk characteristic table to determine next state. Current state ab = 00 with input x =0. Our input equations produce ja=0 ka=0 (refer to characteristic table). How do you determine next state: flip- op next state equations to determine next state. A(t+1) = ba" + (x"b)a = 0 b(t+1) = x"b" + (xa" + x"a)b = 1.
