Lec. 24 Human Movement in a Fluid Medium
Fluids;
- Do not resist deformation (slightly with viscosity)
- Ability to flow
- Inability to support shear stress in static equilibrium
Properties
1. Density
2. Specific weight
3. Viscosity
Nature of Fluids

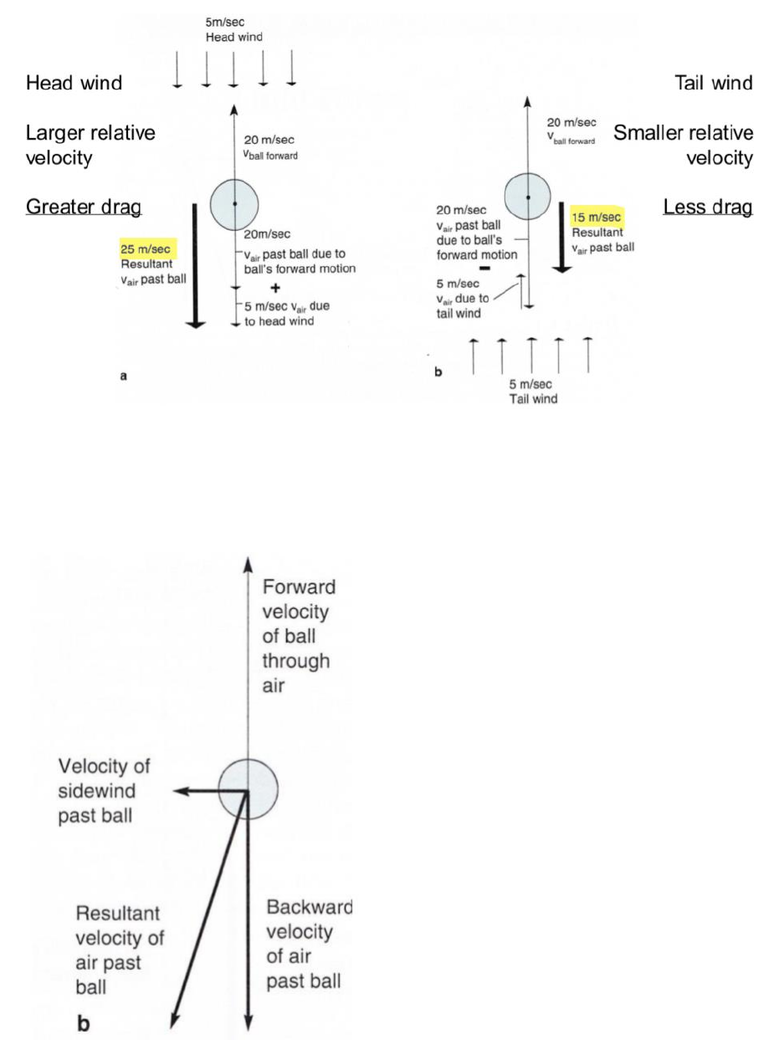

- Head wind: Force against the motion of the cyclist, forcing them to travel
faster to obtain a desired speed
- Tail wind: Force favoring the motion of the cyclist, means they do not
have to work as hard to obtain a specific velocity due to the pushing from
the wind
If the wind force is 2m/s, then the winner of the cycling marathon
is not accredited due to the tail wind

Only pages 1-3 are available for preview. Some parts have been intentionally blurred.

- Smaller relative velocity = less drag
- Larger relative velocity = more drag
- Side wind: If the wind blows laterally, than there is a lateral component
to the velocity, so the drag force is angled relative to the objects pathway

Only pages 1-3 are available for preview. Some parts have been intentionally blurred.

Laminar vs Turbulent Flow
Laminar
Turbulent
No mixing between layers
Mixing of layers
Phenomenon of Goosebumps
- The hair follicles pop upwards creating a rough surface for the air flow,
which creates turbulent air flow
- Turbulent air flow creates pockets for convection, making an insulative
layer
Buoyancy
- Vertical force, always acts upwards
- Archimedes Principle: Buoyant force = Weight of displaced fluid
